Facades and double walls

Façades and double walls play an important role in architecture and construction. They serve not only as an aesthetic element, but also as protection against the weather and as thermal insulation.

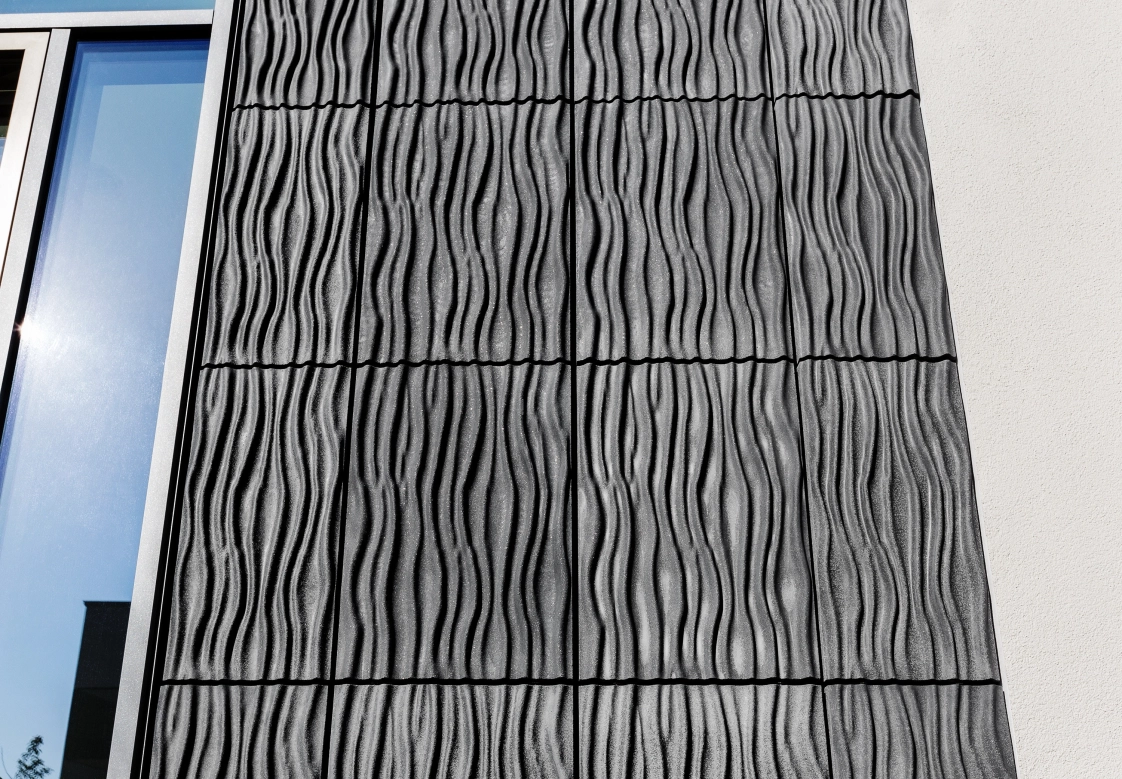

Facade panels made of GODELMANN architectural concrete in the color anthracite

GDM.DUNA tile visia, anthracite

Facade tiles

PROPERTIES

for interior and exterior wall design
Weather-resistant and moisture-resistant
colorfast and durable
Easy to clean and water-absorbent
handmade, from GDM high-performance concrete
Concrete quality ≥ C70/85 (≥ C60/75 for anthracite due to production)
Fair-faced concrete class SB4
Consistently made from color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints
based on design elements made of concrete DIN EN 13198

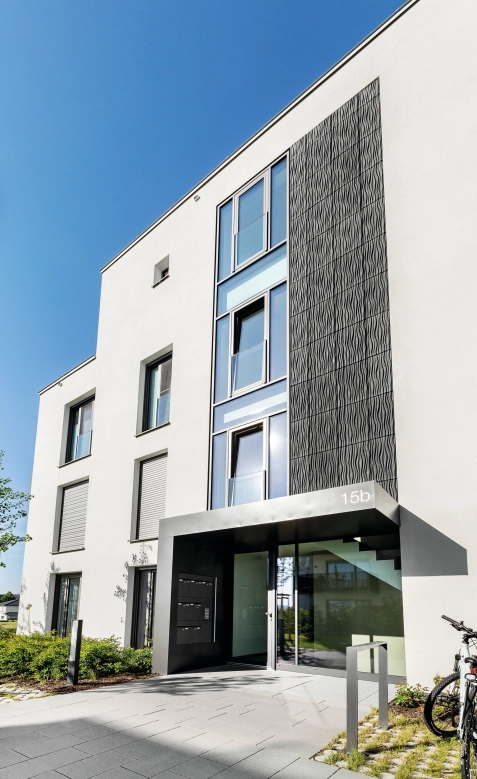

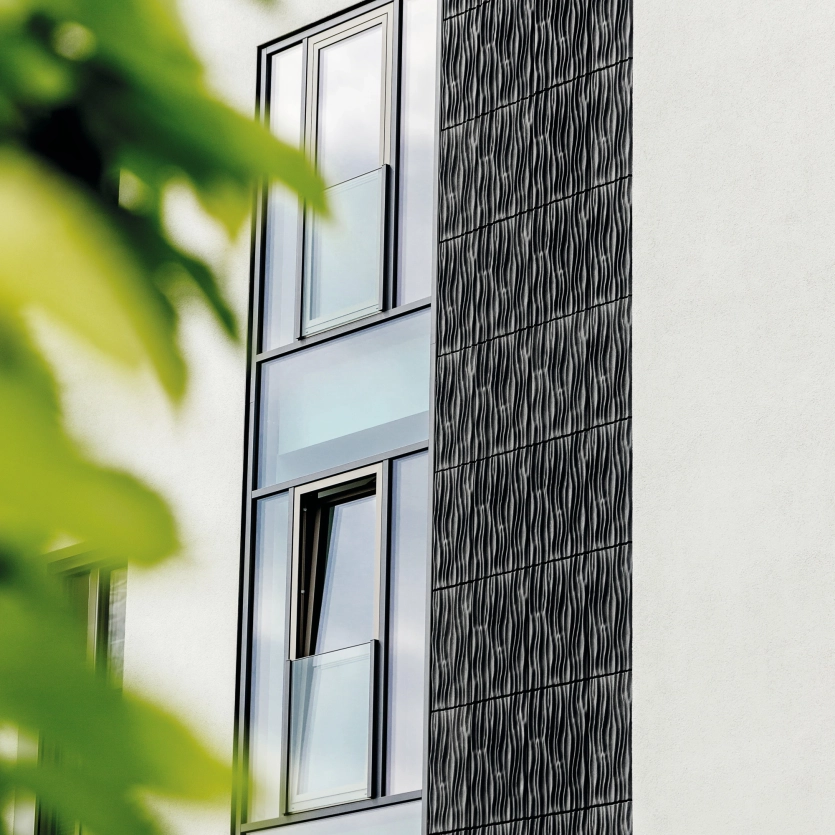

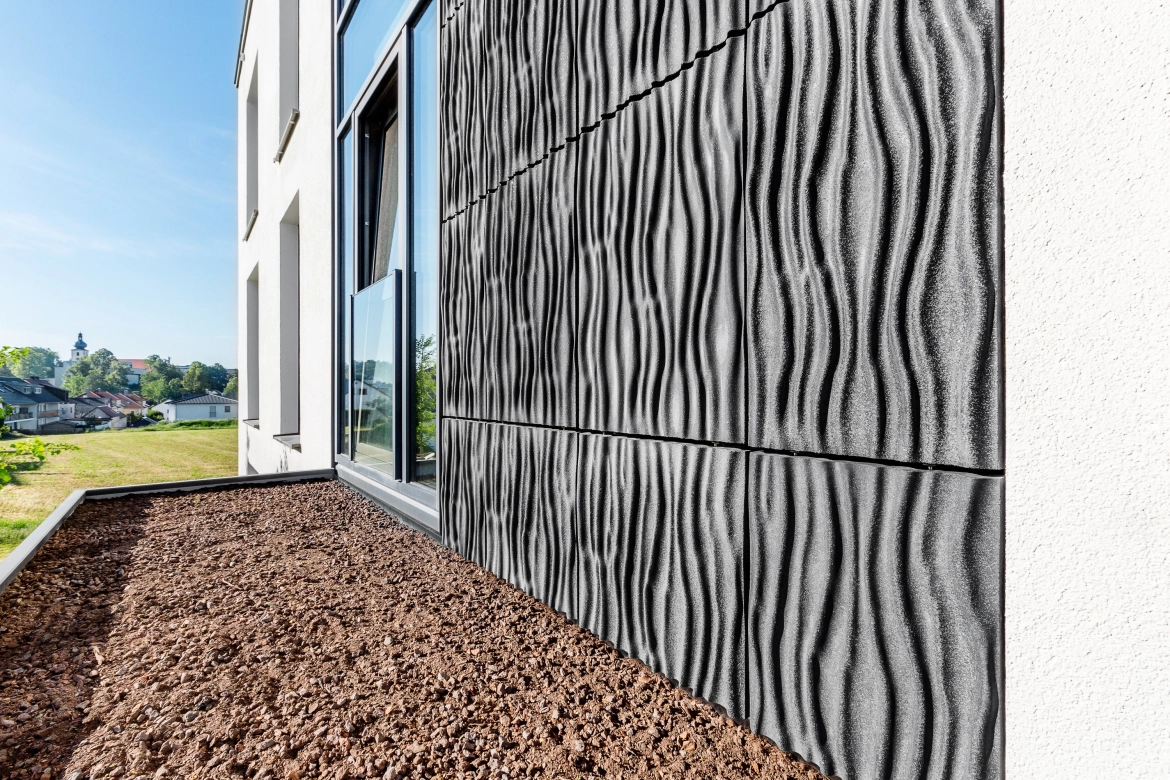

Facade tiles made of GODELMANN architectural concrete in the color anthracite — GDM.DUNA tile visia, anthracite

residential complex inner courtyard planted

Inner-city residential areas

Multigenerational living, Kümmersbruck

The ambitious "Wiesengrund" multi-generational housing project is located in Kümmersbruck near Amberg. The ensemble comprises three buildings and a green inner courtyard with modern outdoor surfaces that embody the landscape architectural concept of "amorphous structures and elliptical shapes".

More about multigenerational living in Kümmersbruck

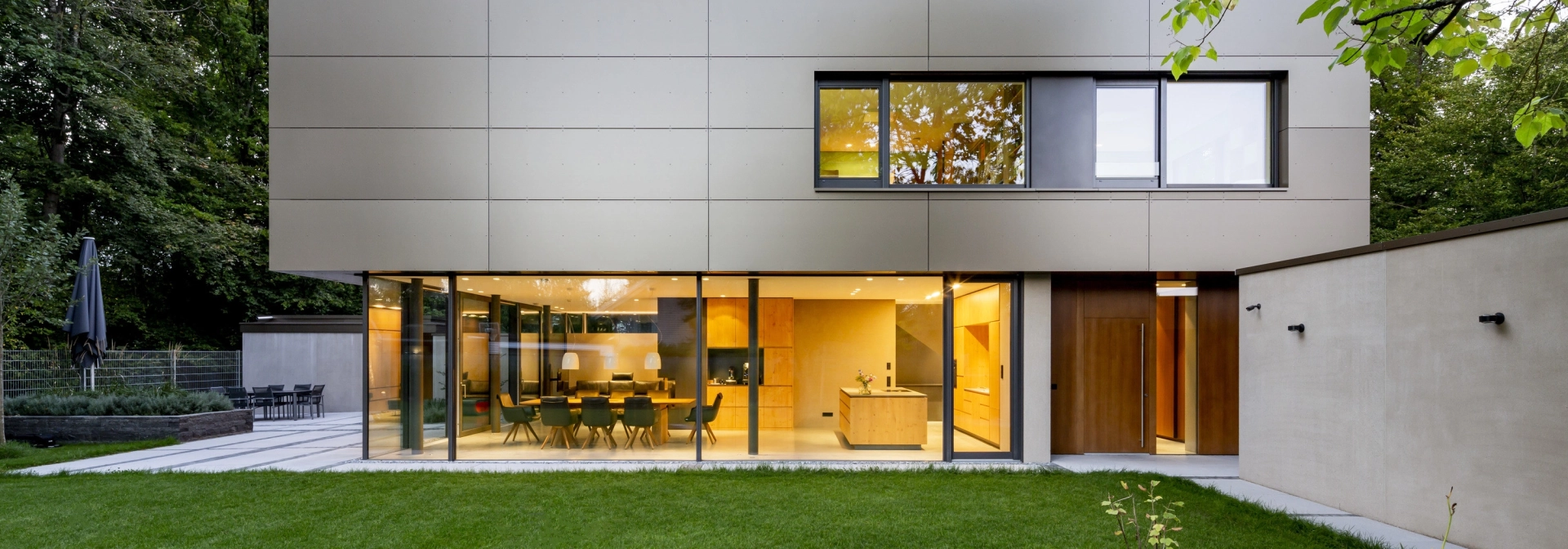

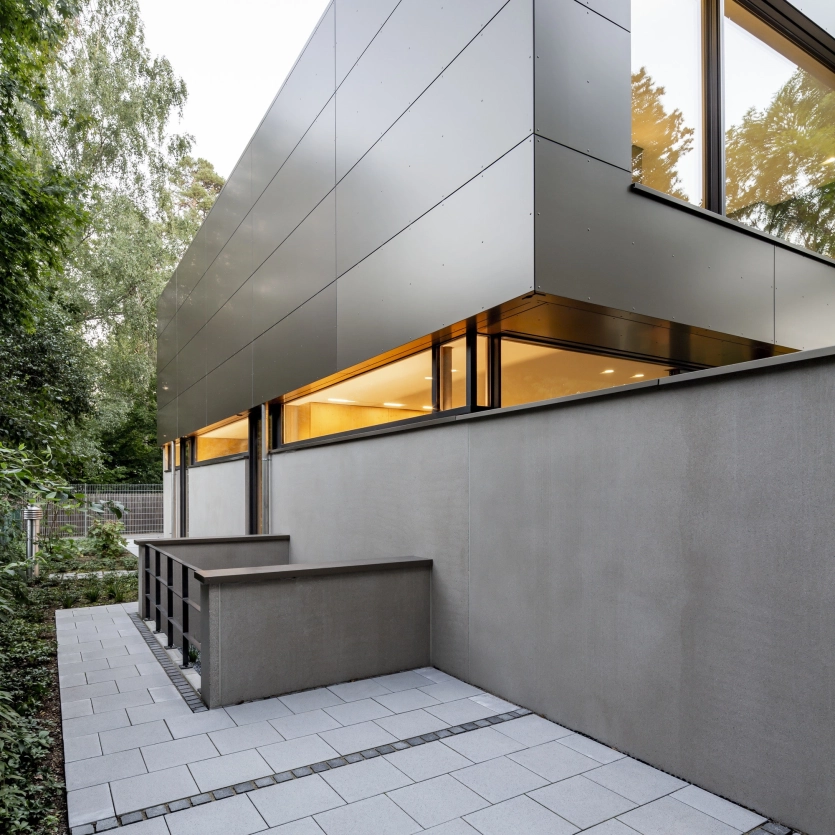

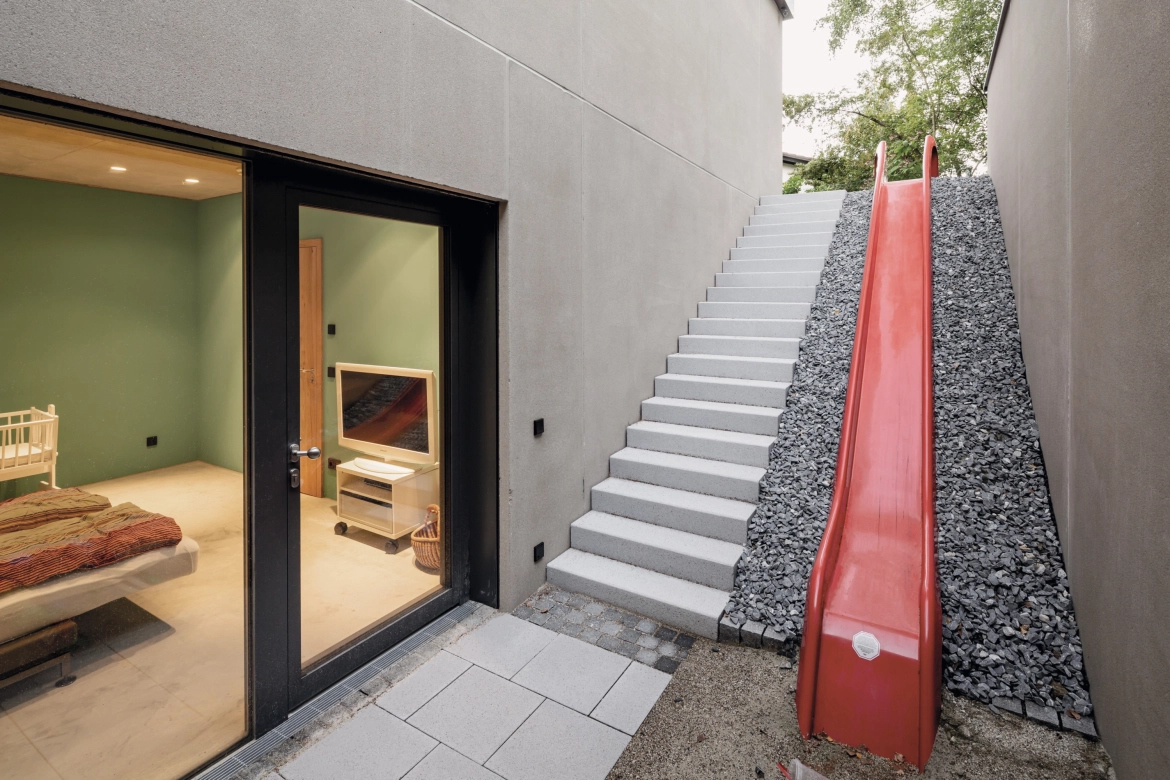

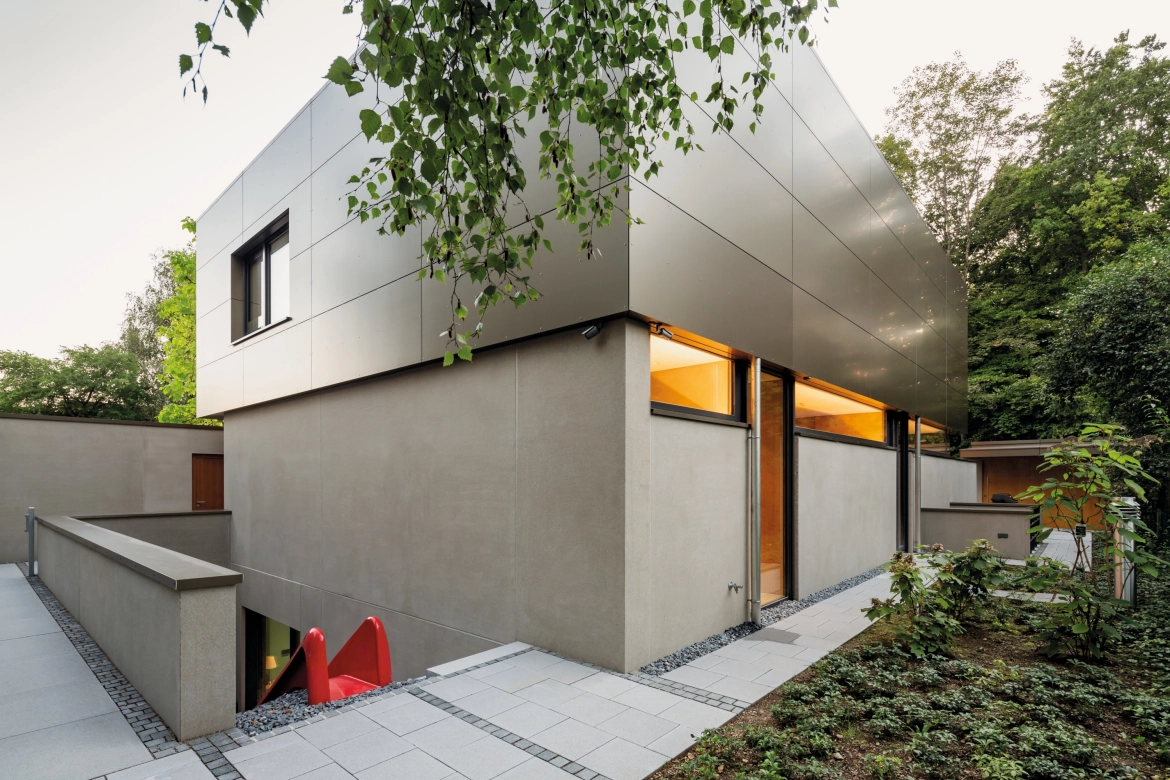

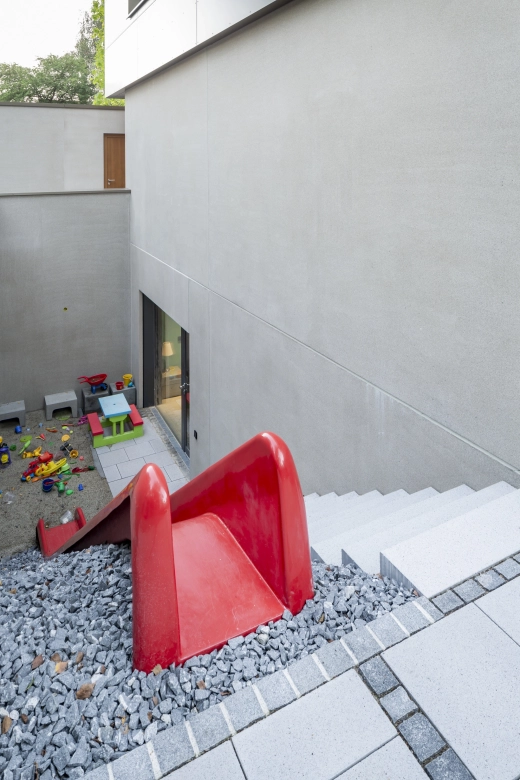

Private villa with a thermal double wall made of high-performance concrete

GDM.MASSIMO individual thermal double wall visia, gray

Thermal double walls

PROPERTIES

Made to measure
max. dimensions: 6 x 3 m and wall thickness: up to 60 cm
Other dimensions and wall thicknesses on request
Insulation thickness: 5 cm to 20 cm mineral wool - polyurethane - Styrodur
Shell thickness: up to 10 cm
U-value: 0.42 to 0.13 W/(m2 x K)
Additional options freely selectable
Hand-made, made of GDM high-performance concrete
exposed concrete class SB4
Consistently made of color-coordinated natural stone chippings and sand with UV-resistant iron oxide paints
based on design elements made of concrete DIN EN 13198

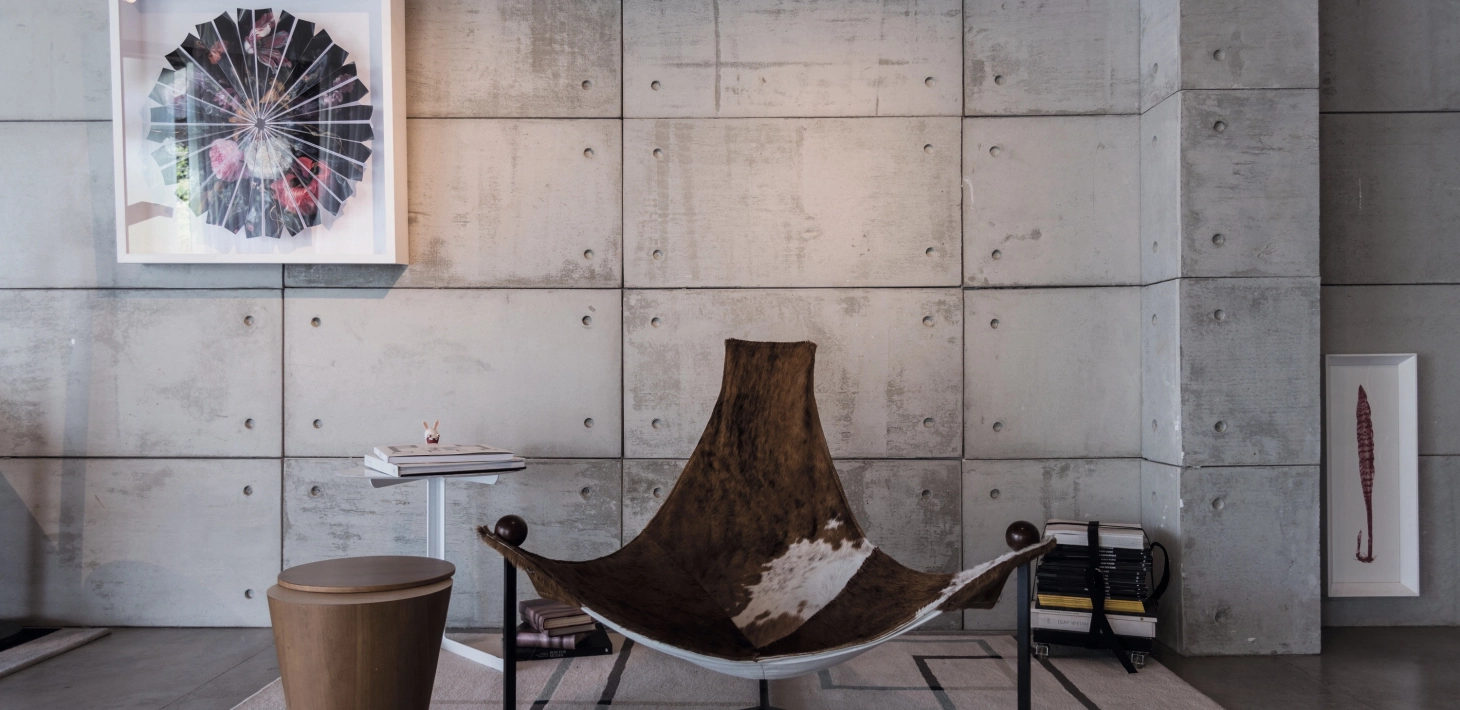

Architectural concrete

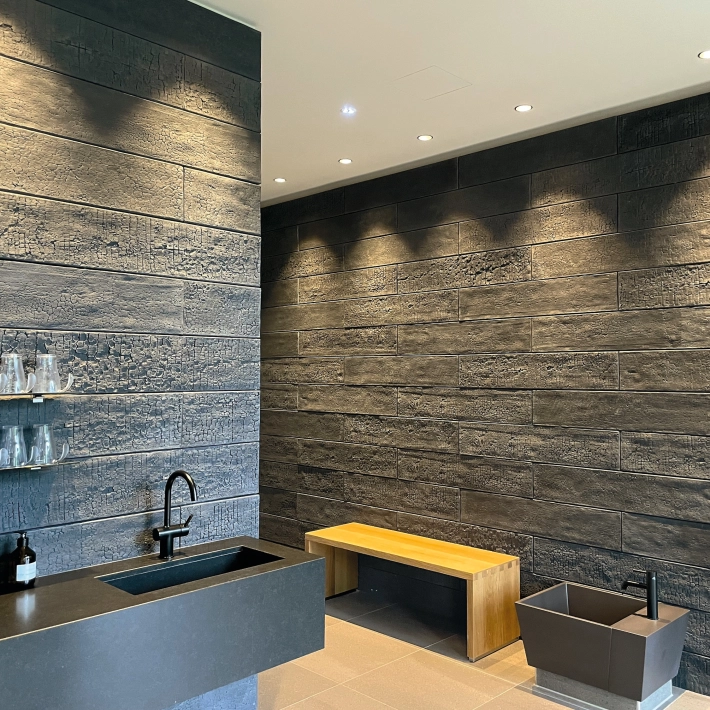

GDM.APPARENTE tile

Gestaltungselemente für Freiräume

Wir sind Spezialisten und Komplettanbeiter für anspruchsvolle Manufakturarbeiten. Jedes Stück steht für Form, Funktion und Fertigung auf höchstem Niveau und spiegelt zugleich unsere Faszination für vollendetes Betondesign.

Gestaltungselemente für Freiräume (PDF)
