GDM.TAKTILE LEITSYSTEME
©
Traffic guidance system

GDM.TACTILE GUIDANCE SYSTEMS

4 colours 3 textures 4 formats 7 variants

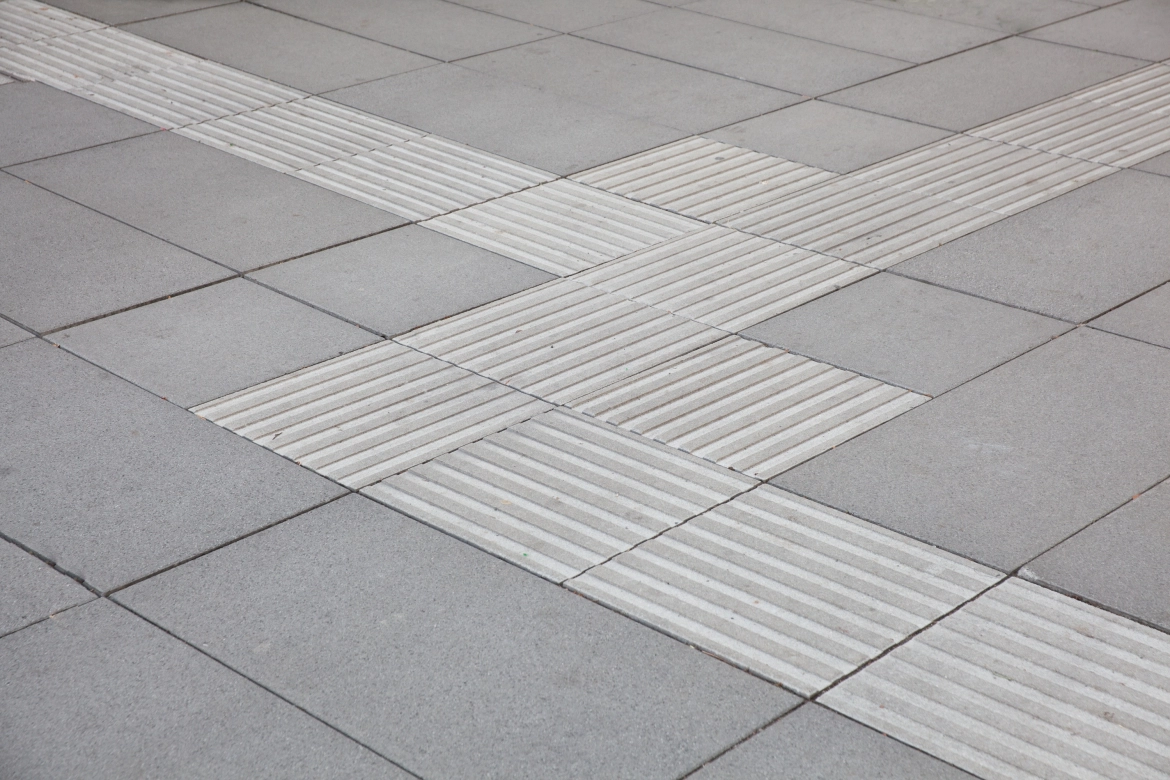

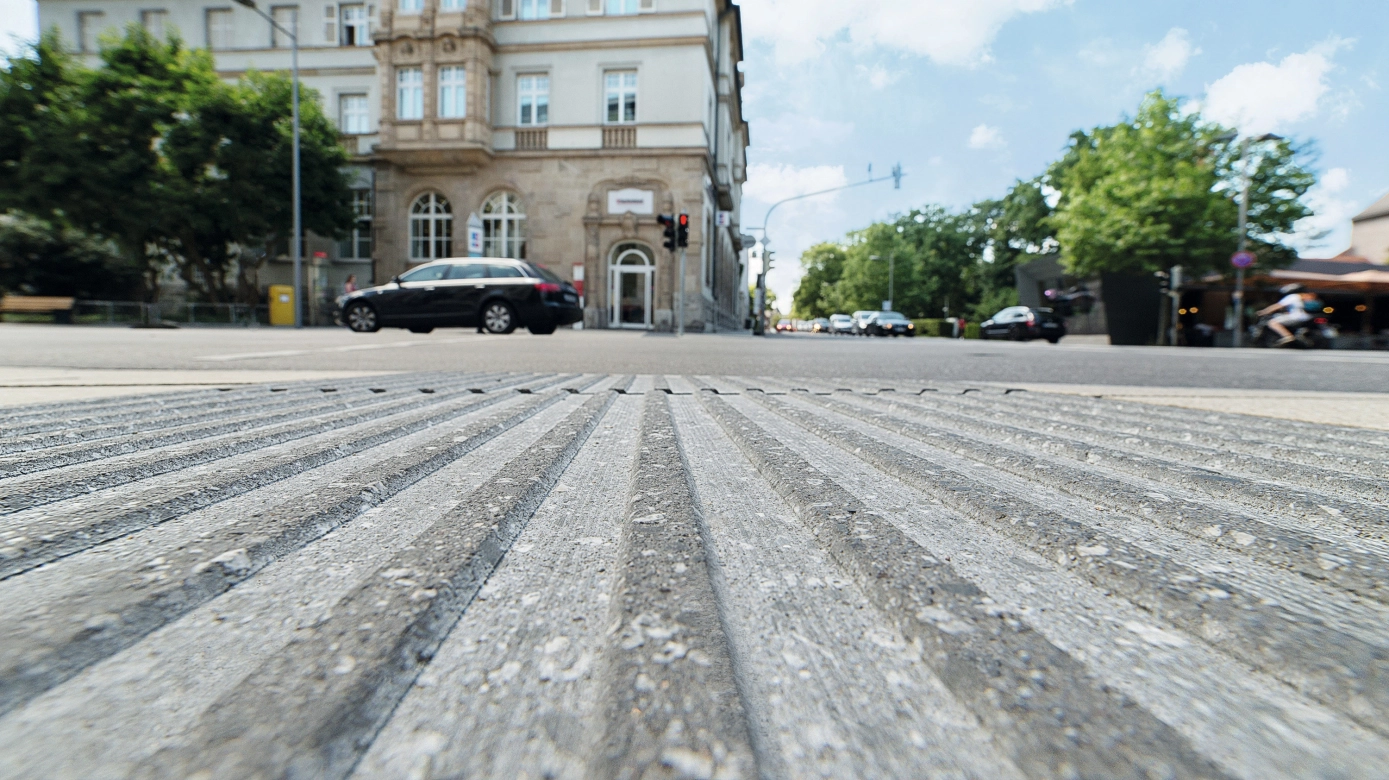

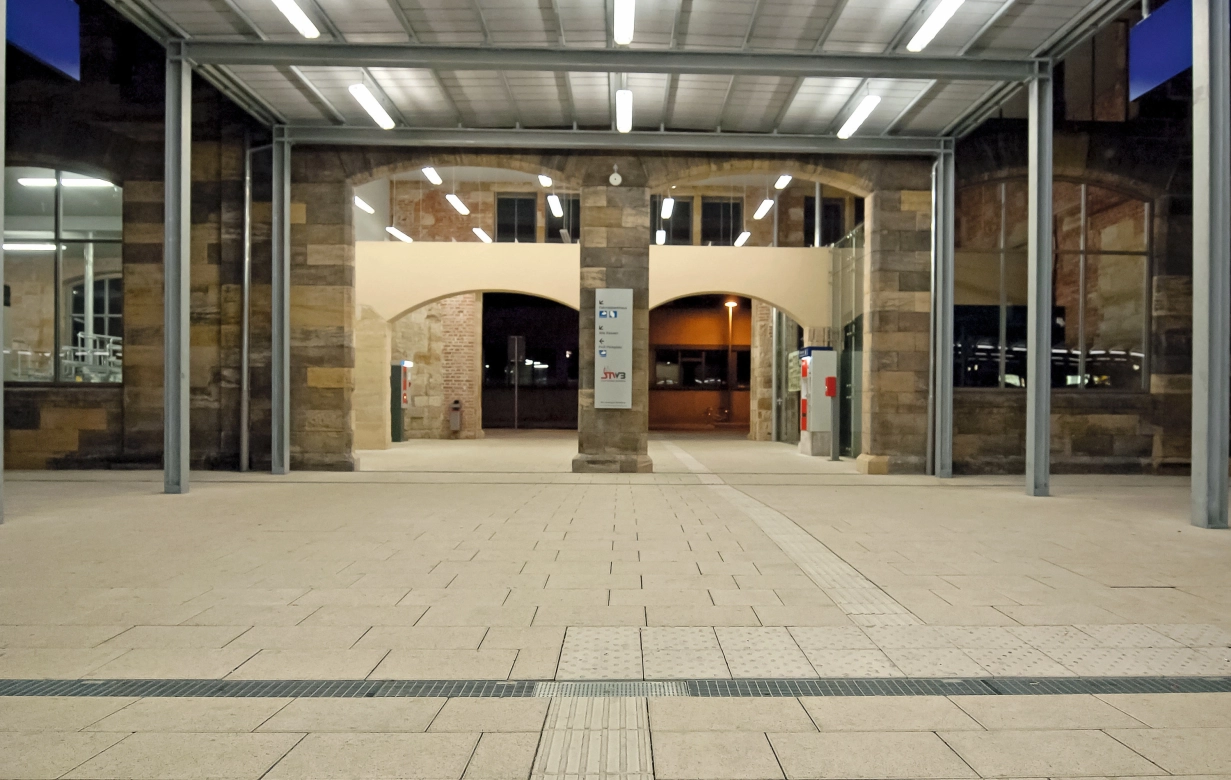

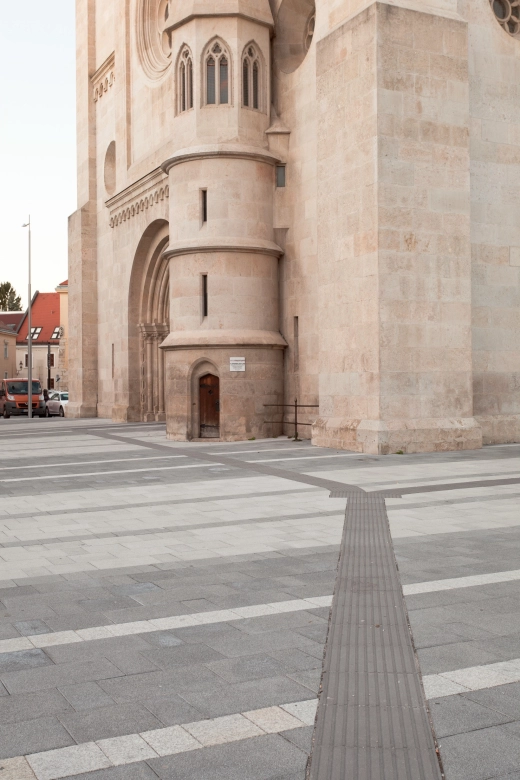

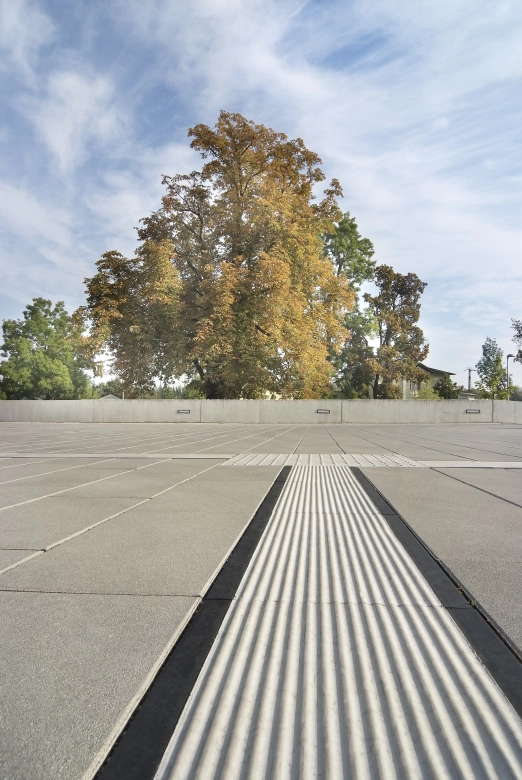

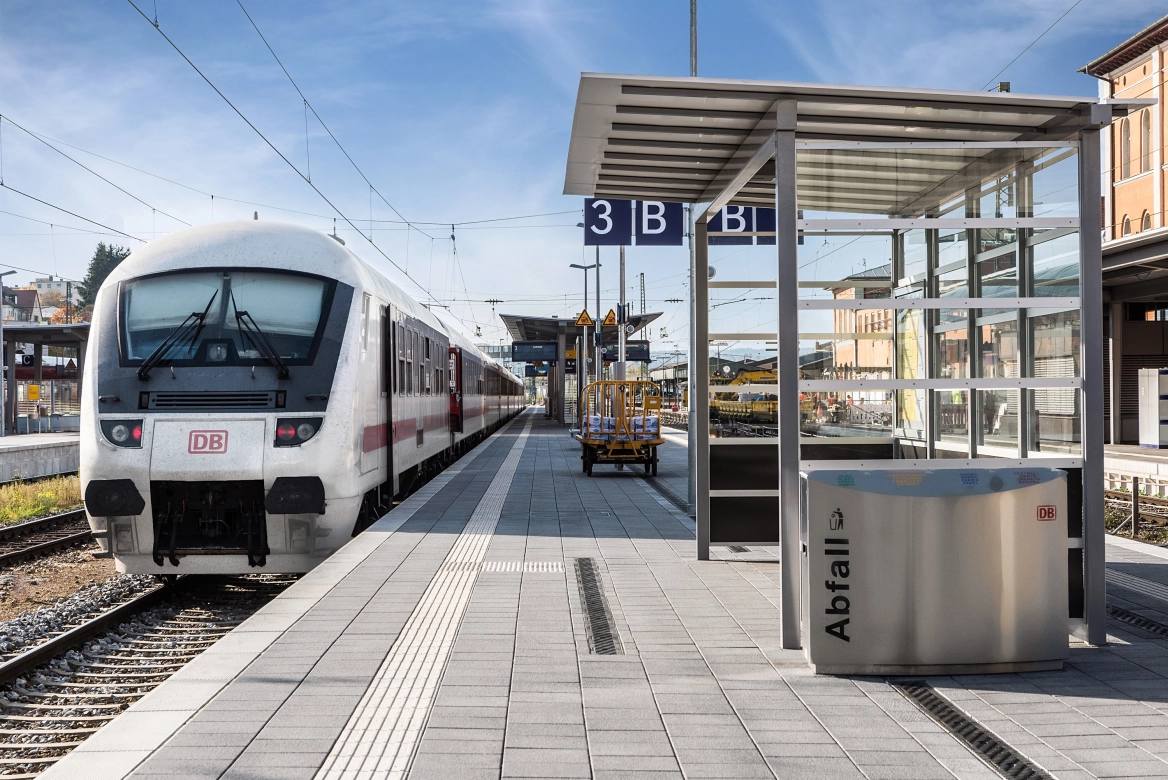

The Disability Discrimination Act requires accessibility. Our tactile floor indicators make public spaces accessible for blind and visually impaired people. The raised ribbed, studded and trapezoidal profiles can be perceived and felt in high-contrast using a long cane for the blind.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
sharp-edged

proActive features

proClean 100: hydrophobized
proClean
proClean 100: hydrophobized
proClean 700: 2-fold coated
proClean
proClean 700: 2-fold coated
SAFE System
proPower
SAFE System

Product gallery

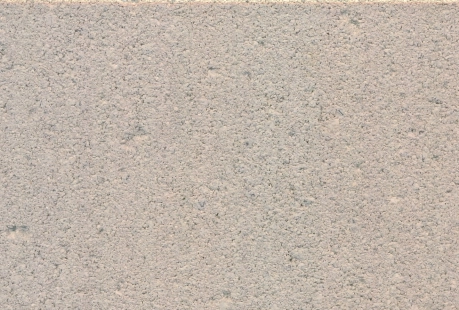

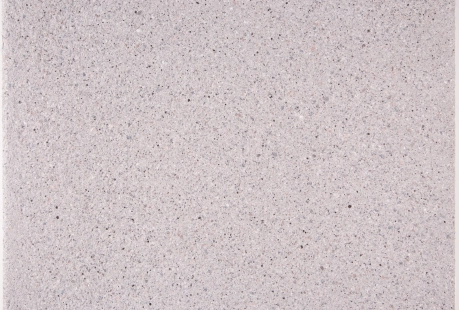

Colours

Formats

Legende

Micro bevel (≤ 2x2 mm)
sharp-edged
proClean proClean
proPower proPower

GDM.DIAMOND PLATE (45°) (ferro, proClean 700: stainless steel shot-blasted, double-coated)

White
Length x Width x Height
42.4 x 30.0 x 8.0 cm
Weight
175.0 kg / m²
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated
White
Length x Width x Height
21.2 x 30.0 x 8.0 cm
Weight
175.0 kg / m²
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated

GDM.DIAMOND PLATE (45°) (nativo, proClean 100: untreated, hydrophobized)

Basalt anthracite
White
Length x Width x Height
42.4 x 30.0 x 8.0 cm
Weight
175.0 kg / m²
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 100: hydrophobized
White
Length x Width x Height
21.2 x 30.0 x 8.0 cm
Weight
175.0 kg / m²
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 100: hydrophobized

Rippen- und Noppenplatten (ferro, proClean 700: stainless steel shot-blasted, double-coated)

GDM.NOPPENPLATTE Spherical caps ortho.

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated

GDM.NOPPENPLATTE Truncated cone diagonal

White
Length x Width x Height
30.0 x 30.0 x 4.0 cm
Weight
26.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated

GDM.NOPPENPLATTE Truncated cone diagonal

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated

GDM.RIPPENPLATTE Trapezoidal profile

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 700: 2-fold coated

Rippen- und Noppenplatten (nativo, proClean 100: untreated, hydrophobized)

GDM.NOPPENPLATTE Spherical caps ortho.

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 100: hydrophobized

GDM.RIPPENPLATTE Trapezoidal profile

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
Micro bevel (≤ 2x2 mm)
Properties
proClean 100: hydrophobized

Rippen- und Noppenplatten (nativo - unprocessed)

GDM.NOPPENPLATTE Spherical caps ortho.

Anthracite
White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
18.0 kg / lfm.
Edge
sharp-edged
Properties
SAFE System

GDM.NOPPENPLATTE Spherical caps ortho.

Anthracite
White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
sharp-edged
Properties
-

GDM.NOPPENPLATTE Spherical caps ortho.

Tertio04
White
Length x Width x Height
20.0 x 10.0 x 10.0 cm
Weight
23.2 kg / lfm.
Edge
sharp-edged
Properties
SAFE System

GDM.NOPPENPLATTE Spherical domes diag.

Anthracite
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
sharp-edged
Properties
-

GDM.RIPPENPLATTE Trapezoidal profile 6 ribs

Anthracite
White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
sharp-edged
Properties
-

GDM.RIPPENPLATTE Trapezoidal profile 8 ribs

White
Length x Width x Height
30.0 x 30.0 x 8.0 cm
Weight
53.0 kg / lfm.
Edge
sharp-edged
Properties
-

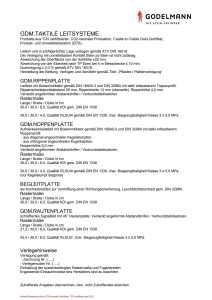

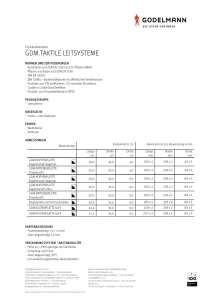

Downloads
