GDM.KLIMASTEIN
Ecological surface system

GDM.KLIMASTEIN® aBG

4 colours 1 texture 2 formats 2 variants
The GDM.KLIMASTEIN gives paved surfaces water-sensitive properties for a better climate in our cities. The proactive stone infiltrates, stores and evaporates precipitation. It cools the microclimate and maintains the natural water balance.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed spacers/​composite stabilizers

proActive features

5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
proDrain 0,0
5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain 0,0
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain 0,0
6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
7.1 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain 0,0
7.1 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
7 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain 0,25
7 % infiltration-capable surface area, runoff coefficient ψ = 0.25
Composite system in a 4.0 cm grid
proPower
Composite system in a 4.0 cm grid
Overheating protection
proReflect
Overheating protection
Noise protection
proSilence
Noise protection
Evaporation ≥ 50 % of annual precipitation
proVapo
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
proWater
Groundwater protection through precipitation water treatment

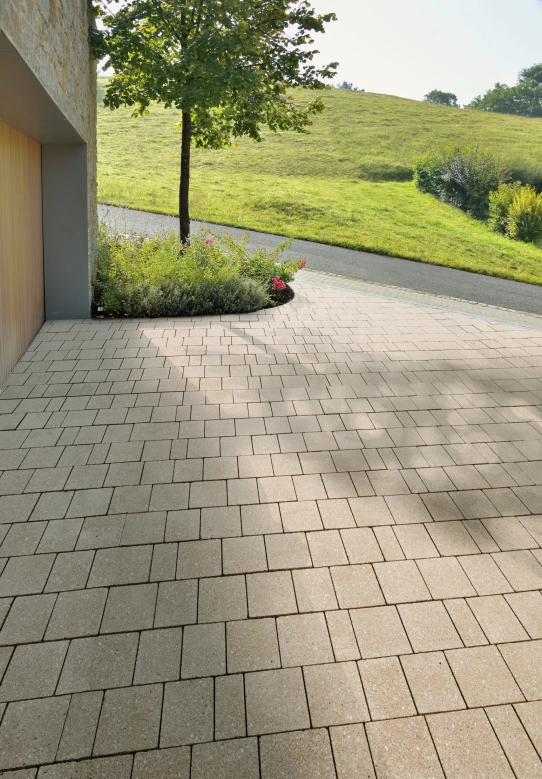

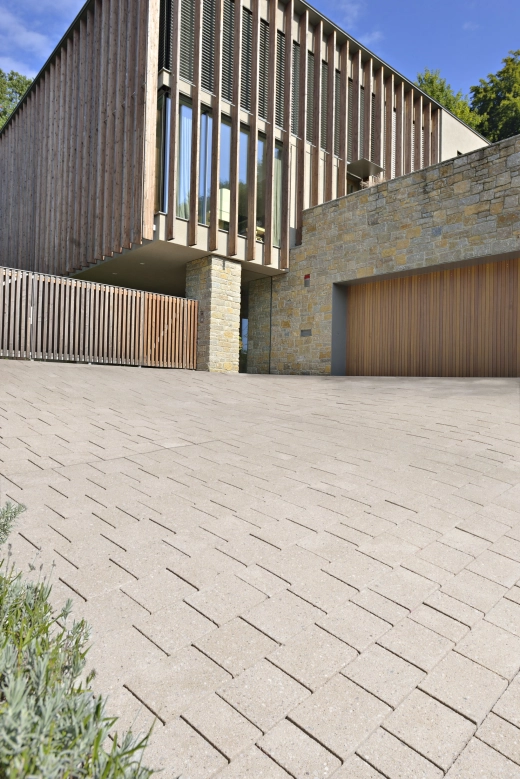

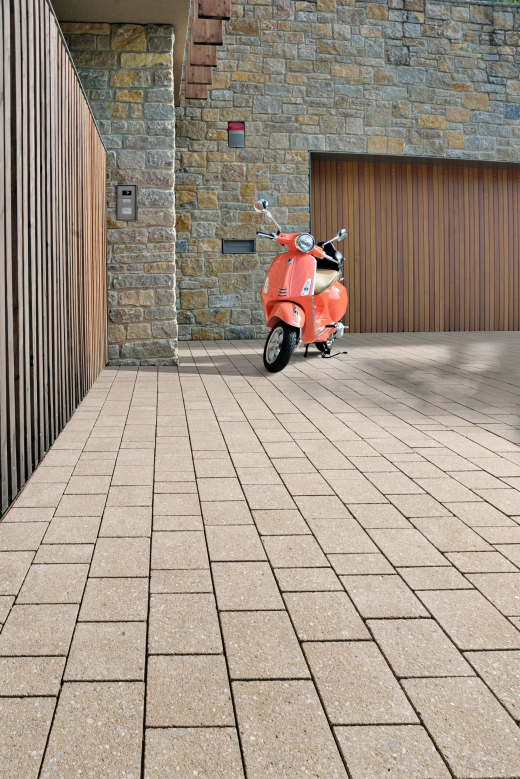

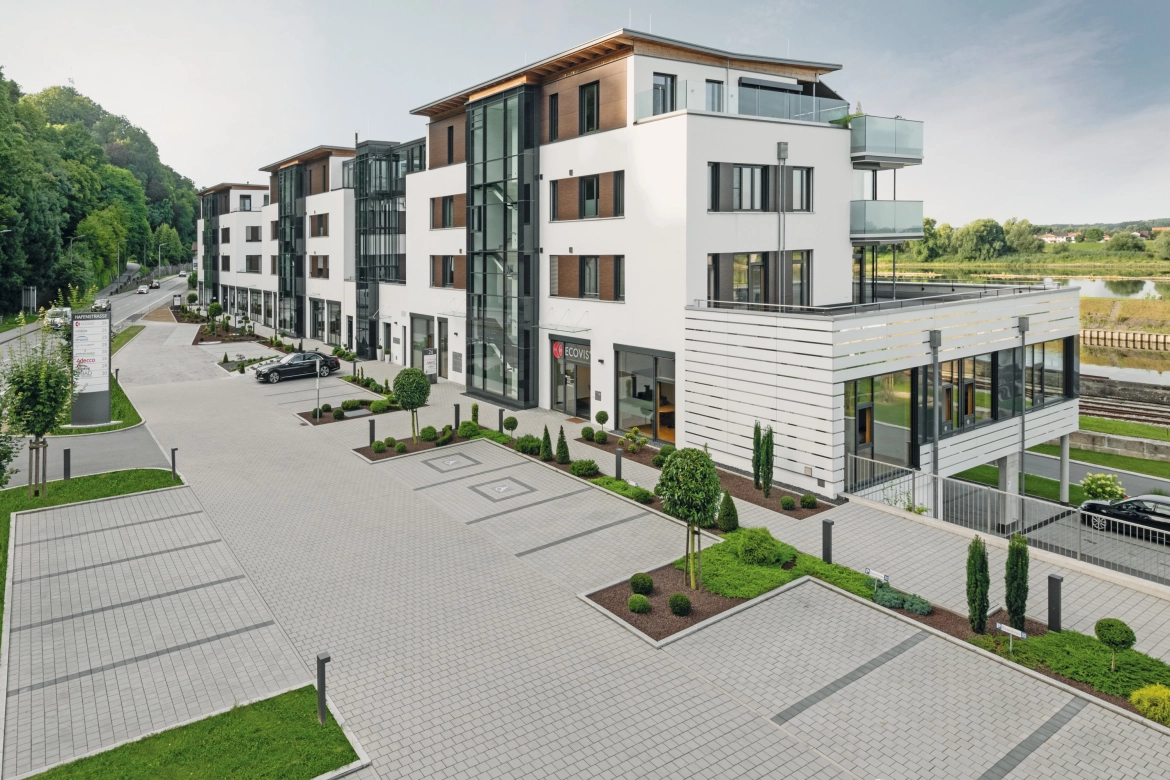

Product gallery

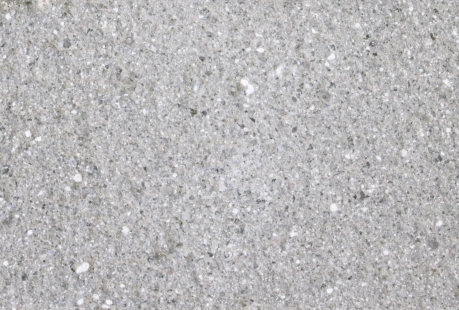

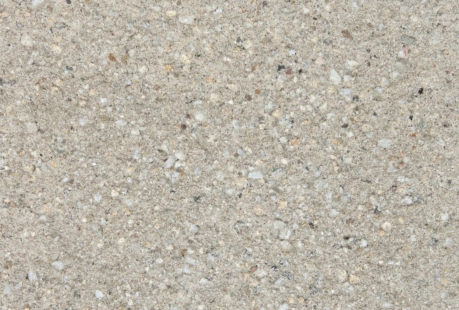

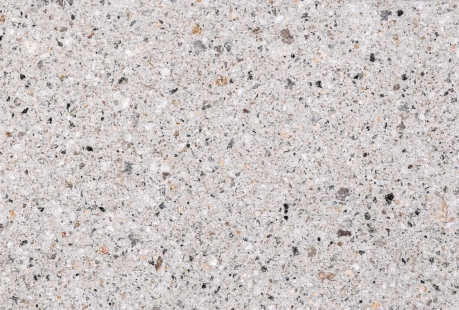

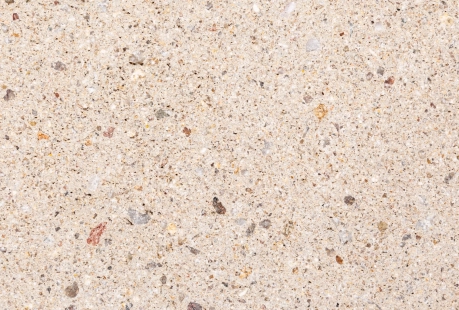

Colours

Formats

Legende

Accessible by car
Heavy duty for occasional use
Heavy duty for regular or frequent use
Micro bevel (≤ 2x2 mm)
7.1 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain
proPower proPower
Overheating protection
proReflect
Noise protection
proSilence
Evaporation ≥ 50 % of annual precipitation
proVapo
Groundwater protection through precipitation water treatment
proWater

Multi-brick system type BJ (ferro - stainless steel shot blasted)

Grey 1 Collection
Sand 2 Collection
Length x Width x Height
40.0 x 20.0 x 8.0 cm
Piece
4
Weight
160.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Piece
1
Weight
160.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Piece
4
Weight
160.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.5 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
40.0 x 20.0 x 10.0 cm
Piece
4
Weight
200.0 kg / m²
Load capacity
Heavy duty for regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
30.0 x 20.0 x 10.0 cm
Piece
8
Weight
200.0 kg / m²
Load capacity
Heavy duty for regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
20.0 x 20.0 x 10.0 cm
Piece
1
Weight
200.0 kg / m²
Load capacity
Heavy duty for regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Grey 1 Collection
Sand 2 Collection
Length x Width x Height
20.0 x 20.0 x 10.0 cm
Piece
4
Weight
200.0 kg / m²
Load capacity
Heavy duty for regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.3% permeable surface area, regenerative system Discharge coefficient ψ = 0.0
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment

Paving stone (ferro - stainless steel shot blasted)

Beige shaded
Lime gray
Length x Width x Height
24.0 x 16.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy duty for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
7.1 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Composite system in a 4.0 cm grid
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Beige shaded
Lime gray
Length x Width x Height
16.0 x 16.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy duty for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
7.1 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Composite system in a 4.0 cm grid
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Beige shaded
Lime gray
Length x Width x Height
24.0 x 16.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy duty for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Composite system in a 4.0 cm grid
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment
Beige shaded
Lime gray
Length x Width x Height
16.0 x 16.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy duty for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
7 % infiltration-capable surface area, runoff coefficient ψ = 0.25
Composite system in a 4.0 cm grid
Overheating protection
Noise protection
Evaporation ≥ 50 % of annual precipitation
Groundwater protection through precipitation water treatment

Product notes

Particularly high concrete quality thanks to high-strength quartz, granite or basalt aggregates
More product notes

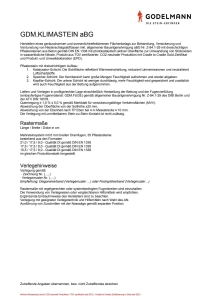

Downloads
