GDM.ALLAN block

Retaining wall system

GDM.ALLAN block

4 colours 2 textures 5 formats 10 variants

With the modular blocks of the GDM.ALLAN block retaining wall system, you can erect masonry structures quickly and easily. Whether you want to demarcate your property, border flower beds and terraces, build staircases or intercept slopes, GDM.ALLAN block is the best way to accomplish these tasks.

Product details

Chamfers & Edges

Chamfer (> 3x4 mm)

sharp-edged

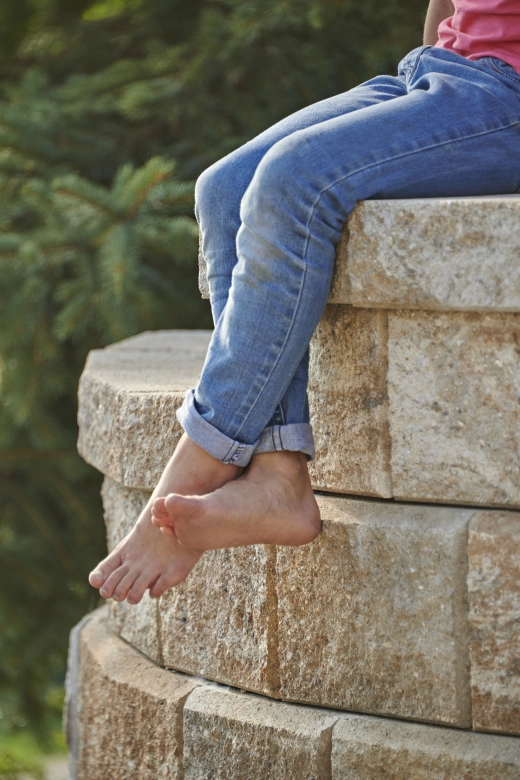

Product gallery

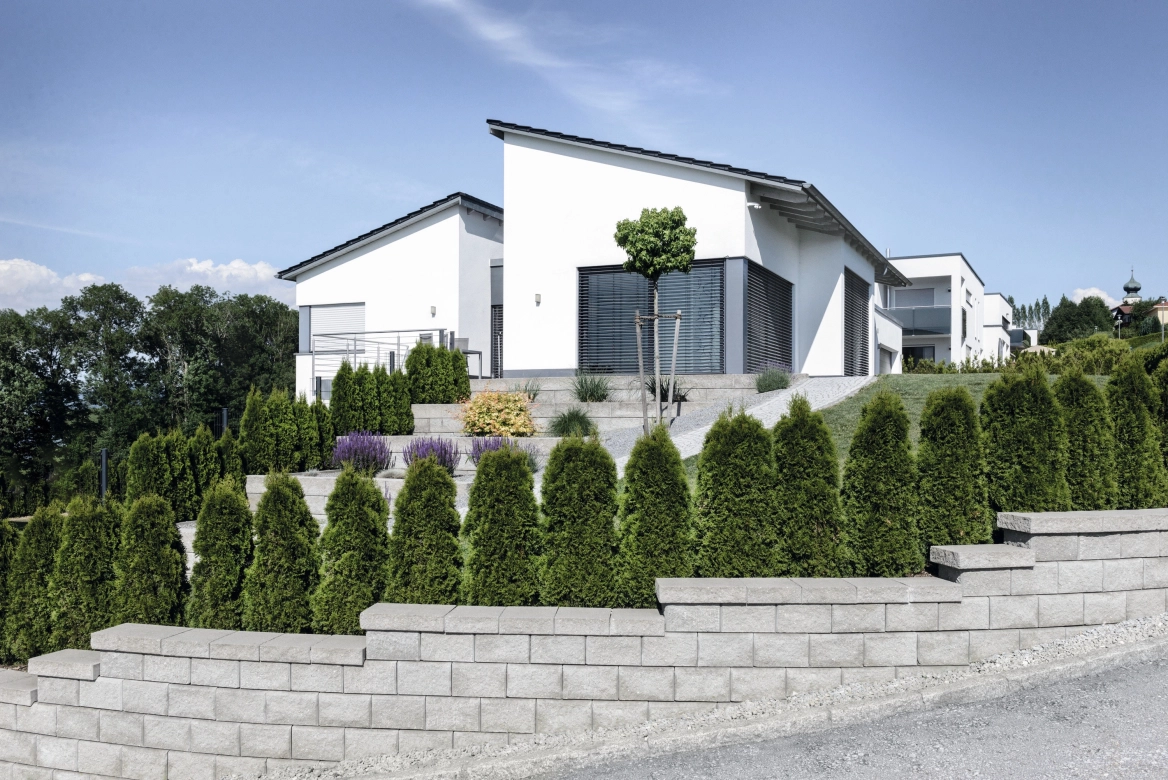

GDM.ALLAN block — GDM.ALLAN block 84° L/B/H: 33/30/20 cm Grau

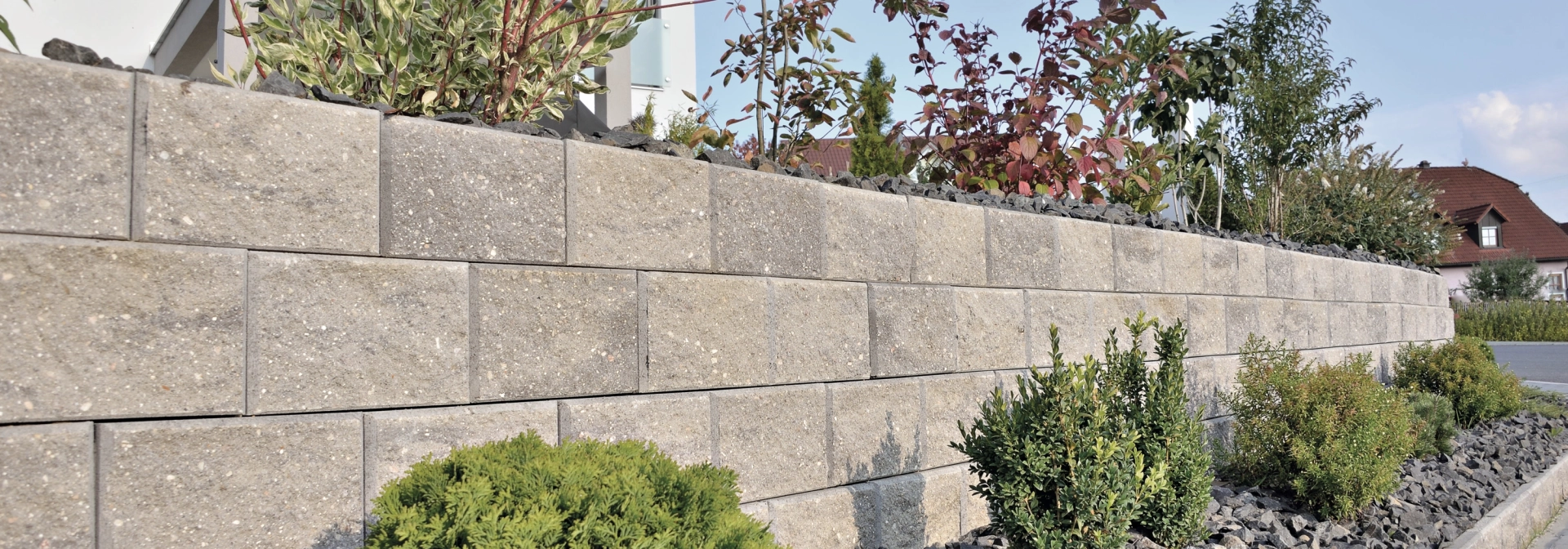

GDM.ALLAN block — GDM.ALLAN block 84° L/B/H: 33/30/20 cm Muschel-Kalk nuanciert

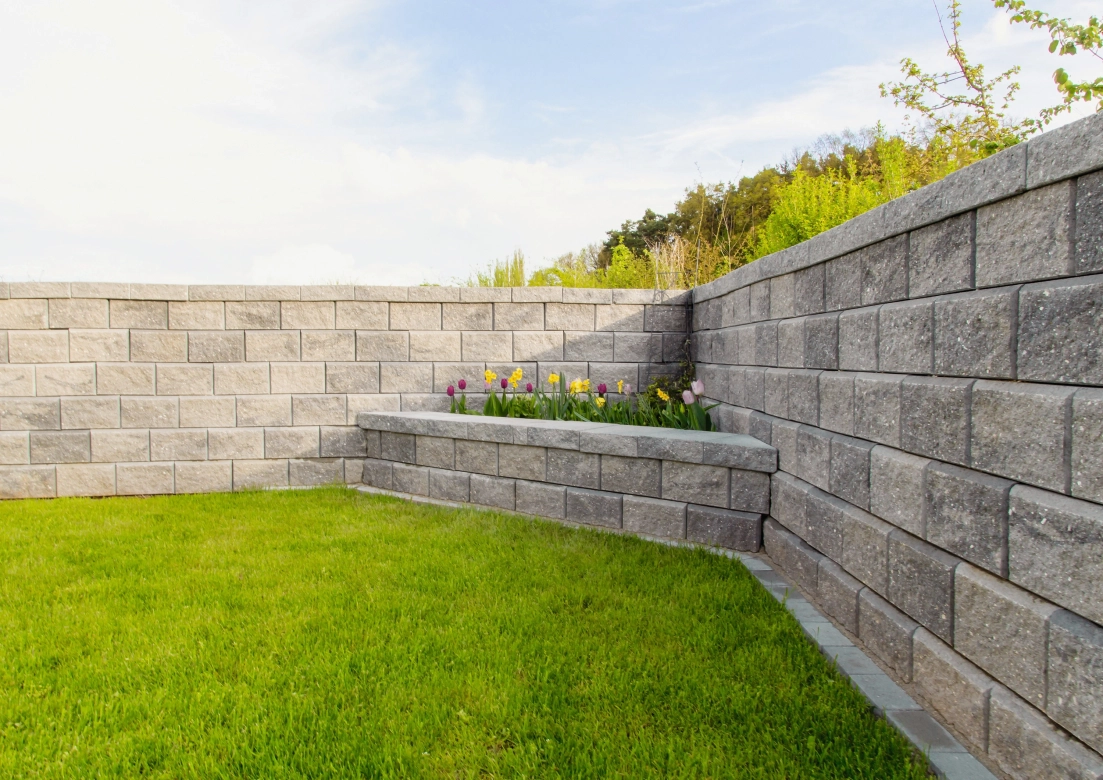

GDM.ALLAN block — GDM.ALLAN block 87° L/B/H: 33/30/20 cm Grau

Colours

ferro - stainless steel shot blasted Gray

Rough visible surface with circumferential chamfer

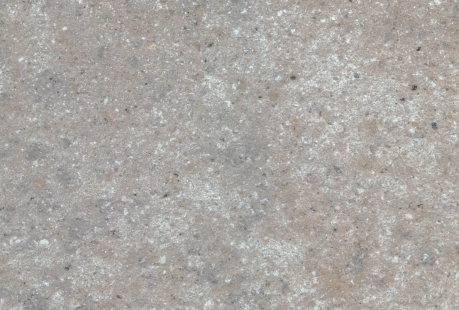

ferro - stainless steel shot blasted Shell limestone nuanced

Rough visible surface with circumferential chamfer

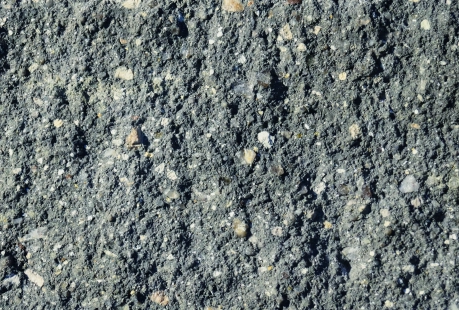

hollow chamber system Gray-black nuanced

Rough visible surface with circumferential chamfer

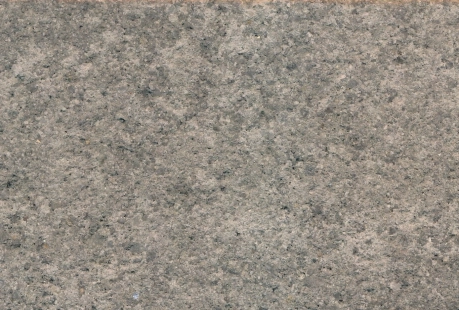

ferro - stainless steel shot blasted Gray-black nuanced

Rough visible surface with circumferential chamfer

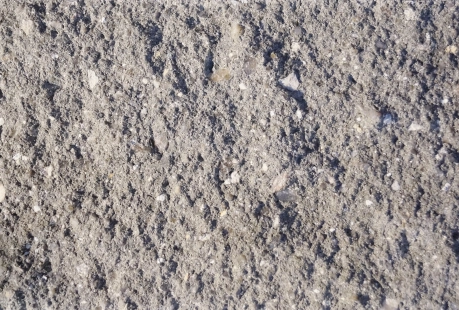

hollow chamber system Gray

Rough visible surface with circumferential chamfer

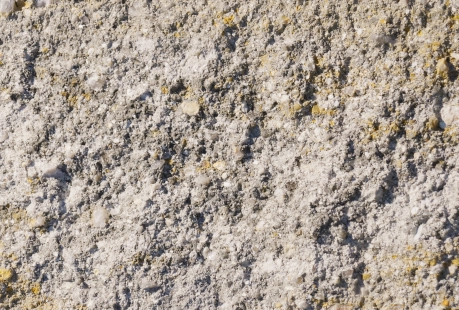

hollow chamber system Shell limestone nuanced

Rough visible surface with circumferential chamfer

hollow chamber system Limestone nuanced

Rough visible surface with circumferential chamfer

ferro - stainless steel shot blasted Limestone nuanced

Rough visible surface with circumferential chamfer

Formats

Legende

Chamfer (> 3x4 mm)

sharp-edged

Abdecksteine (ferro - stainless steel shot blasted)

Cover corner stone left

Length x Width x Height

53.1 x 34.8 x 10.0 cm

Weight

45.0 kg / St.

Edge

Cover corner stone right

Length x Width x Height

53.1 x 34.8 x 10.0 cm

Weight

45.0 kg / St.

Edge

Cover stone

Length x Width x Height

33.0 x 35.0 x 10.0 cm

Weight

25.5 kg / St.

Edge

Label					Length cm	Width cm	Height cm	Edge	Weight kg / St.
Cover corner stone left					53.1	34.8	10.0		45.0
Cover corner stone right					53.1	34.8	10.0		45.0
Cover stone					33.0	35.0	10.0		25.5

Stützwandsystem (hollow chamber system)

Corner unit left (2-piece)

Length x Width x Height

33.0 x 50.0 x 20.0 cm

Weight

68.0 kg / St.

Edge

Corner unit right (2-piece)

Length x Width x Height

33.0 x 50.0 x 20.0 cm

Weight

68.0 kg / St.

Edge

Curbstone left large

Length x Width x Height

50.0 x 30.0 x 20.0 cm

Weight

41.0 kg / St.

Edge

Curbstone left small

Length x Width x Height

33.0 x 30.0 x 20.0 cm

Weight

27.0 kg / St.

Edge

Curbstone right large

Length x Width x Height

50.0 x 30.0 x 20.0 cm

Weight

41.0 kg / St.

Edge

Curbstone right small

Length x Width x Height

33.0 x 30.0 x 20.0 cm

Weight

27.0 kg / St.

Edge

Normal stone

Length x Width x Height

33.0 x 30.0 x 20.0 cm

Weight

27.0 kg / St.

Edge

Label					Length cm	Width cm	Height cm	Edge	Weight kg / St.
Corner unit left (2-piece)					33.0	50.0	20.0		68.0
Corner unit right (2-piece)					33.0	50.0	20.0		68.0
Curbstone left large					50.0	30.0	20.0		41.0
Curbstone left small					33.0	30.0	20.0		27.0
Curbstone right large					50.0	30.0	20.0		41.0
Curbstone right small					33.0	30.0	20.0		27.0
Normal stone					33.0	30.0	20.0		27.0

Product notes

Particularly high concrete quality thanks to high-strength quartz, granite or basalt aggregates

More product notes

Features

Rough visible surface with circumferential chamfer
rough on one side
Run-up 84°
worldwide patented hollow chamber system with geogrid
Earthquake-proof retaining wall system
Force-fit and form-fit connection without mortar
No concrete foundation required
High adaptability due to straight or radial installation
Laying without heavy construction machinery
excellent drainage properties

Quality

Particularly high concrete quality thanks to high-strength quartz, granite or basalt aggregates
made throughout from color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints
see BGB guideline, non-standardized concrete products - requirements and tests - (BGB-RiNGB), October 1998
Frost/de-icing salt resistance: ≤ 100 g/m2
CO₂ neutrally produced

Installation instructions

Laying in radii enables the course of the wall to be adapted to the terrain
Low dead weight of the molded parts makes installation work easier
Intelligent system compensates for minor subsidence of the substrate without losing internal stability
Possible construction methods: Retaining wall, free-standing wall (double-sided) as a visual or noise protection wall, facing masonry or water edge protection
Possible as a gravity wall or as a wall according to the KBE system depending on height, load assumption and soil parameters
Wall drainage for draining water through the front of the stone
Quantity requirement wall drainage ≥ 1 piece/10 - 15 running meters.
Further information at www.allanblock.de

Price-/Delivery-Information

Delivery time approx. 14 days depending on picking effort
all prices in Euro/unit plus VAT and freight

Downloads

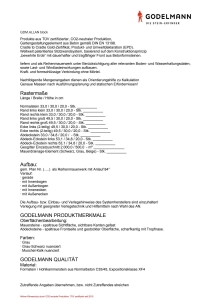

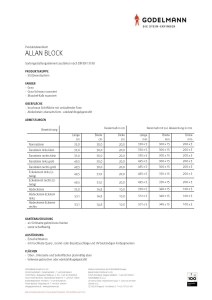

Ausschreibungsvorlage_GDM.ALLAN block.docx (DOCX)
