The new 50 mm L blocks in the TETRAGO range impress with their technical features: all-round spacers and integrated shear protection facilitate slope stabilization. The upper leg enables problem-free connection to the T8 low kerb. Sophisticated details and simple handling increase the transfer performance. In a sleek concrete look or with attractive, rough-textured visible surfaces for demanding tasks in gardening and landscaping.
Product details
proActive features
proPower
Thrust protection system on the underside

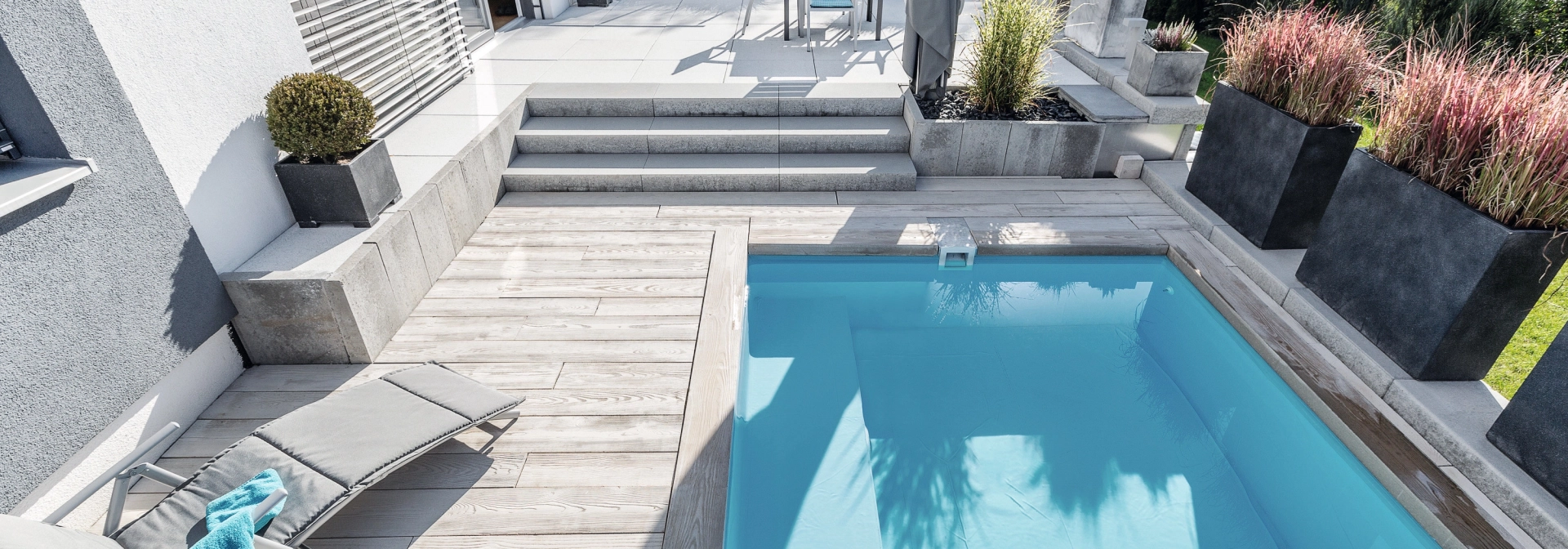

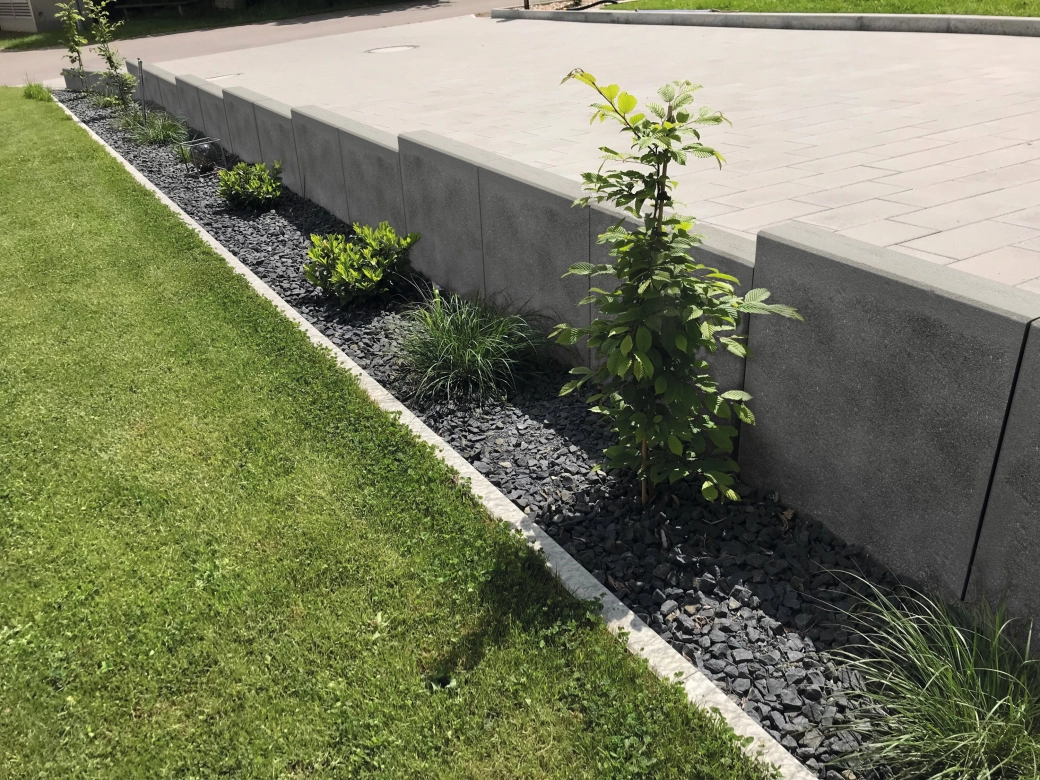

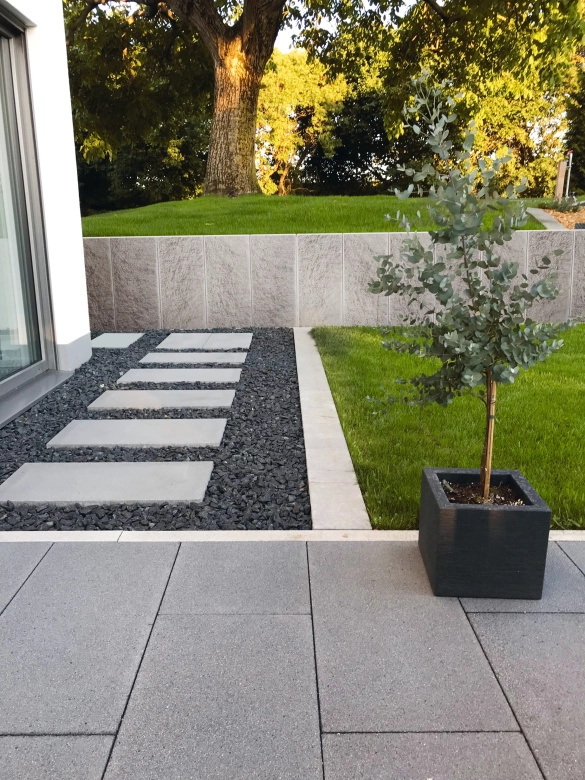

Product gallery
GDM.TETRAGO L-wall nativo Grau
GDM.TETRAGO L-wall bruchrau Granit
Colours
nativo; unworked Grey
nativo naturbelassene Sichtflächen mit Fase
Formats
Legende
proPower
Length x Width x Höhe
30.0 x 50.0 x 40.0 cm
Weight
53.0 kg / St.
Properties
Length x Width x Höhe
30.0 x 50.0 x 55.0 cm
Weight
74.0 kg / St.
Properties
Length x Width x Höhe
42.5 x 50.0 x 80.0 cm
Weight
105.0 kg / St.
Properties
Length x Width x Höhe
42.5 x 50.0 x 105.0 cm
Weight
135.0 kg / St.
Properties
Length x Width x Höhe
65.0 x 50.0 x 130.0 cm
Weight
195.0 kg / St.
Properties
Length cm
Width cm
Höhe cm
Weight kg / St.
Properties
30.0
50.0
40.0
53.0
30.0
50.0
55.0
74.0
42.5
50.0
80.0
105.0
42.5
50.0
105.0
135.0
65.0
50.0
130.0
195.0
Product notes
particularly high concrete quality due to high-strength quartz, granite or basalt aggregates
the reinforced, rounded angle design prevents the accumulation of standing water in the corners.
Baulänge 50 cm für schnelles und einfaches Handling. Dies erhöht die
Versetzleistung pro lfm. deutlich.
das integrierte Schubsicherungssystem an der Fußunterseite ist
zugleich Ausweichraum für eventuell aufgekratzte Beton- oder Tragschichtkörnungen.
Dadurch leichteres und maßgenaueres Versetzen.
die Oberseite von GDM.TETRAGO L-wall nativo eignet sich zum optimalen
Anschluss an den Tiefbord T8.
umlaufend, angeformte Abstandsscheiben (2,5 mm), schützen vor
Knirschverlegung und Kantenbeschädigungen beim Transport sowie
beim Versetzen der Steine und während des Nutzungszeitraums.
dadurch wird bei der Verpackung auf Styropor und Holzleisten verzichtet,
was unnötigen Abfall auf der Baustelle vermeidet.
Quality
particularly high concrete quality due to high-strength quartz, granite or basalt aggregates
Garden design element made of concrete according to DIN EN 13198
Frost/de-icing salt resistance 10 times higher than the standard: ≤ 100 g/m2(standard: ≤ 1.0 kg/m2)
