GDM.DRAIN aBG
ecological area system

GDM.DRAIN aBG Nr. Z-84.1-9

5 colours 3 textures 2 formats 2 variants

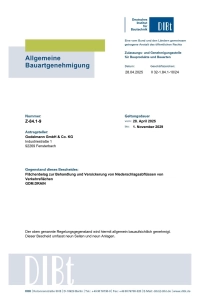

The GDM.DRAIN aBG No. Z-84.1-9 multi-stone system represents the new generation of ecological paving for the treatment and infiltration of rainwater runoff from traffic areas. GDM.DRAIN aBG No. Z-84.1-9 has the general building authority approval (aBG) of the German Institute for Building Technology, Berlin.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed spacers/​composite stabilizers
aged edge
with concealed spacers/​composite stabilizers

proActive features

5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
proWater
Groundwater protection through precipitation water treatment

Product gallery

Colours

Formats

Legende

Heavy load for occasional use
Heavy load with regular or frequent use
Micro bevel (≤ 2x2 mm)
aged edge
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
proDrain
Groundwater protection through precipitation water treatment
proWater

Multi-brick system type AW (antikplus; aged)

Grey-Black
Shell-Lime
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
aged edge
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
aged edge
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 10.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
aged edge
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment

Multi-brick system type AW (nativo; unworked)

Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 10.0 x 8.0 cm
Piece
8
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment

Paving stone (ferro; stainless steel shot-blasted)

Grey-Uni
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment

Paving stone (nativo; unworked)

Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Anthrazite
Grey
Grey-Black
Shell-Lime
Length x Width x Height
20.0 x 20.0 x 8.0 cm
Weight
160.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Anthrazite
Grey
Length x Width x Height
30.0 x 20.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy load with regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
Anthrazite
Grey
Length x Width x Height
20.0 x 20.0 x 10.0 cm
Weight
200.0 kg / m²
Load capacity
Heavy load with regular or frequent use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5.8 - 7.6 % infiltration-capable surface area, regenerative system, runoff coefficient ψ = 0.00
Groundwater protection through precipitation water treatment
