GDM.NUEVA liner
Turf liner®

GDM.NUEVA® liner

2 colours 1 texture 2 formats 1 variant

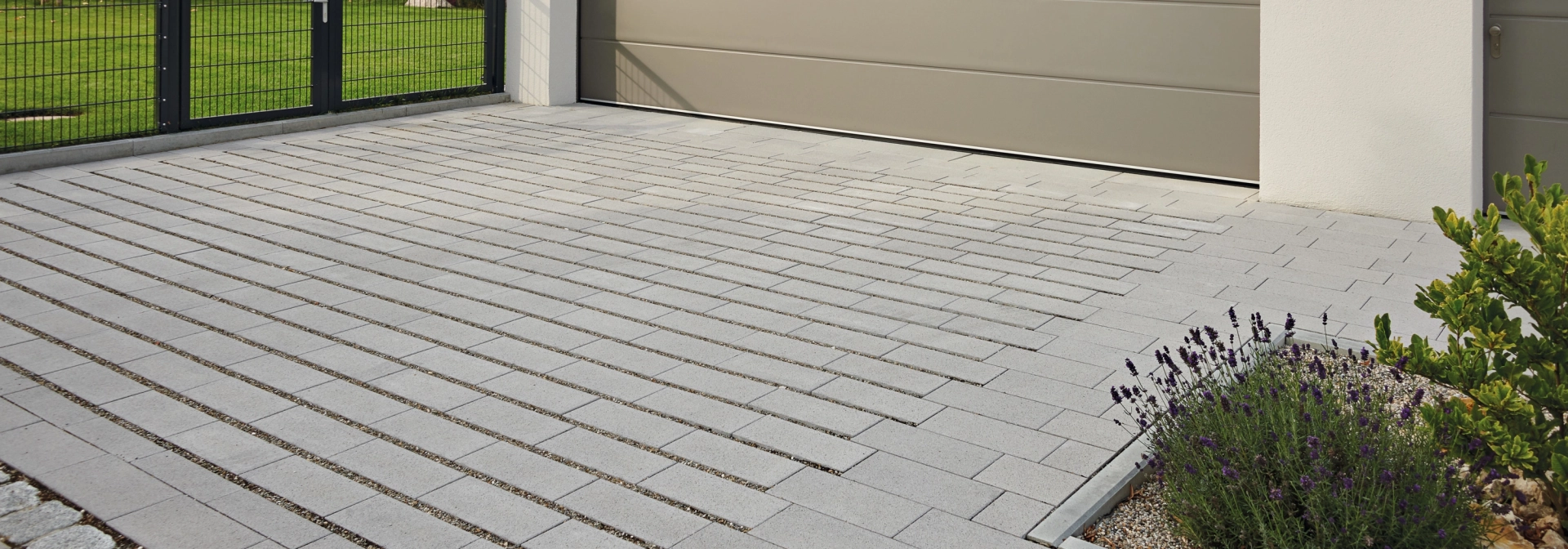

With the turf liner, linear surface geometries can be set in an exciting dialog with building architecture. It is available to match the GDM.NUEVA stone surface. Depending on requirements, the joints can be covered with grass or basalt chippings. This allows you to create a meaningful, ecological accent in any case.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed spacers/​composite stabilizers

proActive features

15 % greenable area, runoff coefficient ψ = 0.2
proDrain 0,2
15 % greenable area, runoff coefficient ψ = 0.2

Product gallery

Colours

Formats

Legende

Accessible by car
Heavy duty for occasional use
Micro bevel (≤ 2x2 mm)
15 % greenable area, runoff coefficient ψ = 0.2
proDrain

Turf liner® 30 mm (ferro - stainless steel shot blasted)

Anthracite University
Gray University
Length x Width x Height
40.0 x 20.0 x 8.0 cm
Gap
30.0 mm
Weight
155.0 kg / m²
Load capacity
Accessible by car
Edge
Micro bevel (≤ 2x2 mm)
Properties
15 % greenable area, runoff coefficient ψ = 0.2
Anthracite University
Gray University
Length x Width x Height
30.0 x 20.0 x 8.0 cm
Gap
30.0 mm
Weight
155.0 kg / m²
Load capacity
Heavy duty for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
15 % greenable area, runoff coefficient ψ = 0.2

Product notes

Particularly high concrete quality thanks to high-strength quartz, granite or basalt aggregates
More product notes

More GDM.NUEVA products

Terrace slab
GDM.NUEVA® light
Paving stone
GDM.NUEVA® stone
Tree grates
GDM.NUEVA® tree

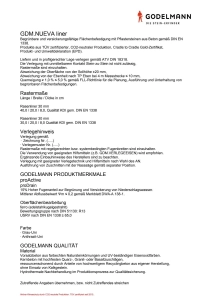

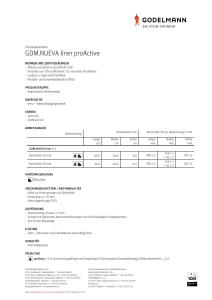

Downloads
