GDM.NUEVA tree
Tree grates

GDM.NUEVA® tree

3 colours 1 texture 4 formats 4 variants

Product details

Chamfers & Edges

Edges slightly beveled (approx. 3 mm silicone bevel)
Micro bevel (≤ 2x2 mm)

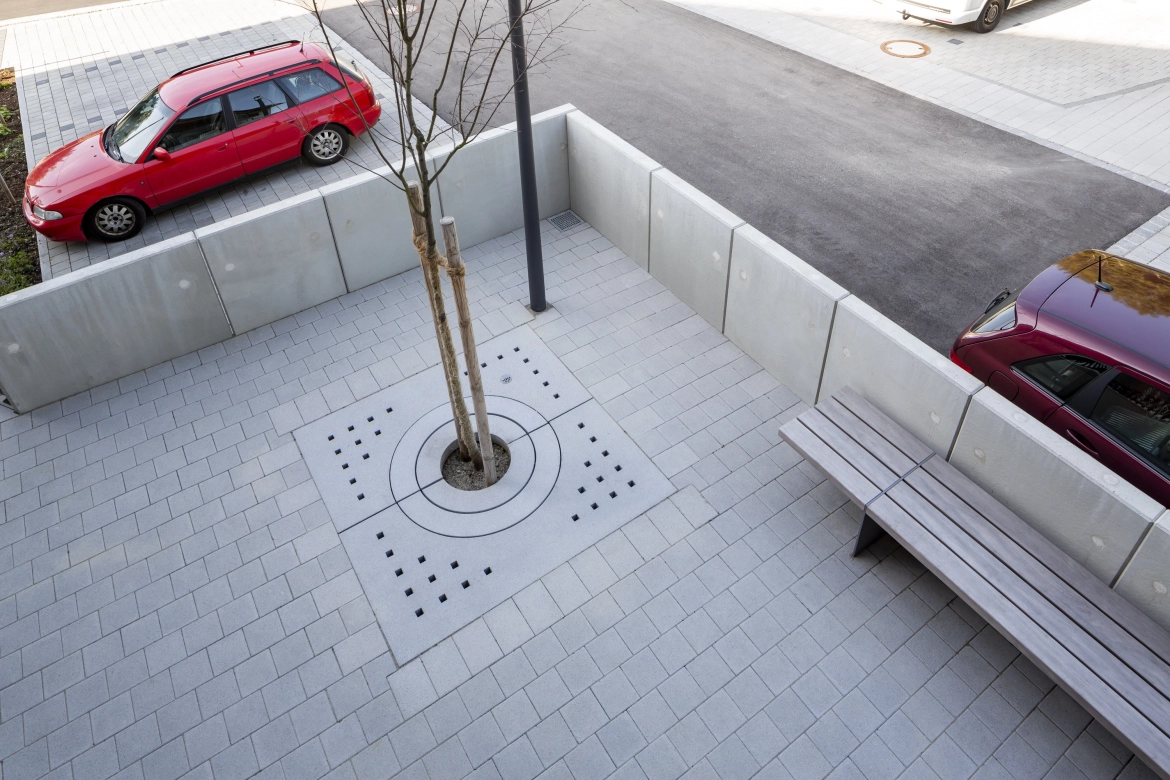

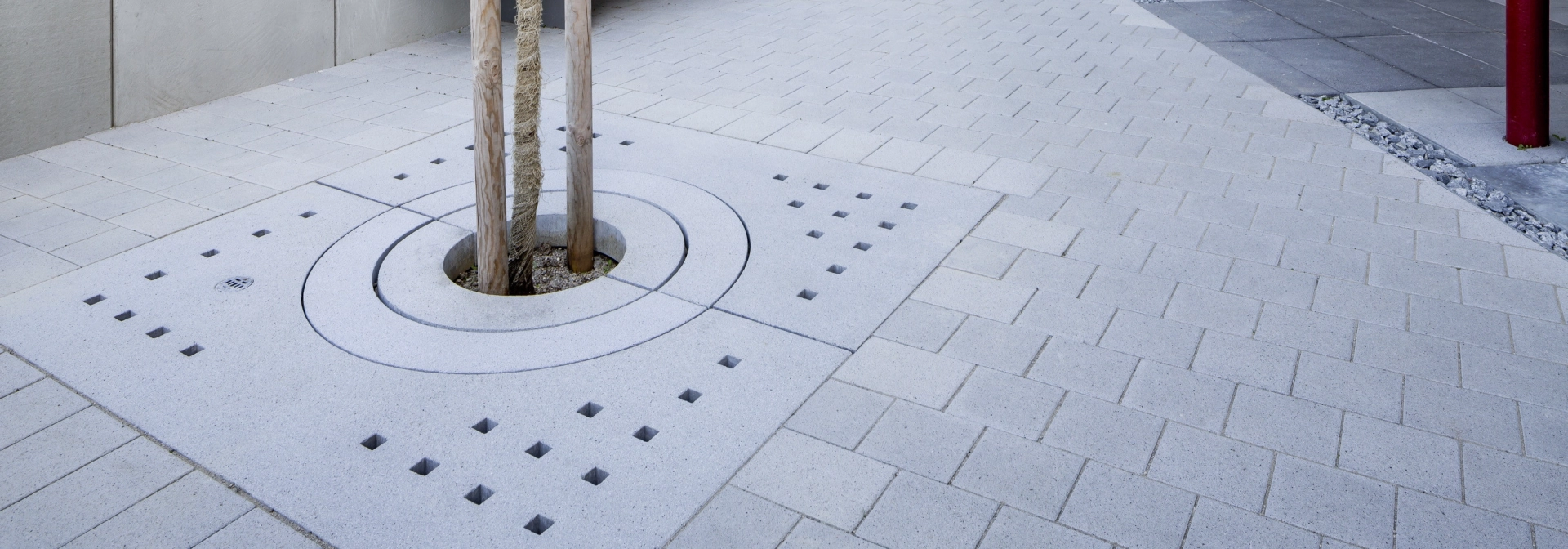

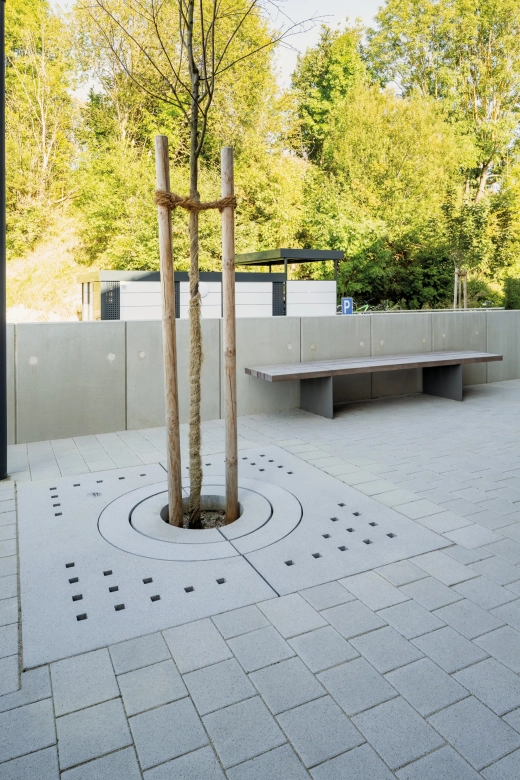

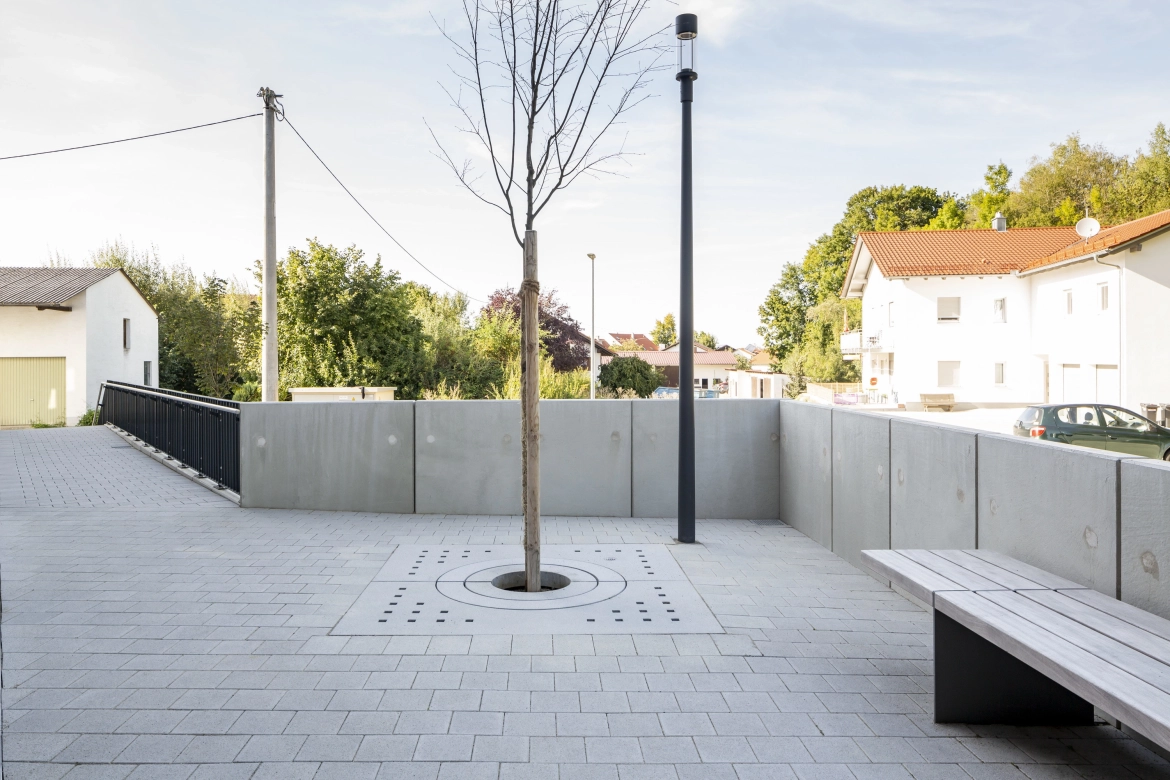

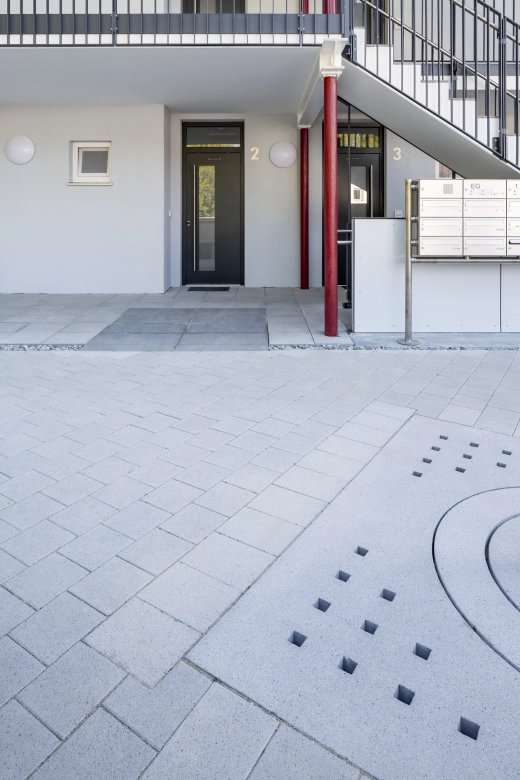

Product gallery

Colours

Formats

Legende

Edges slightly beveled (approx. 3 mm silicone bevel)
Micro bevel (≤ 2x2 mm)

Baumscheiben Handfertigung (ferro - stainless steel shot blasted)

Inner ring 2-piece manual production

Gray
Length x Width x Height
65.2 x 16.5 x 10.0 cm
Weight
85.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Inner ring 2-piece manual production

Gray
Gray University
Length x Width x Height
65.2 x 16.5 x 16.0 cm
Weight
180.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Outer ring 2-piece manual production

Gray
Length x Width x Height
92.7 x 16.5 x 10.0 cm
Weight
130.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Outer ring 2-piece manual production

Gray
Gray University
Length x Width x Height
92.7 x 16.5 x 16.0 cm
Weight
270.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Tree disk 2-piece handmade

Gray
Length x Width x Height
200.0 x 200.0 x 10.0 cm
Weight
690.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Tree disk 2-piece handmade

Gray
Length x Width x Height
240.0 x 240.0 x 16.0 cm
Weight
2,250.0 kg / St.
Edge
Edges slightly beveled (approx. 3 mm silicone bevel)

Baumscheiben Maschinenfertigung (ferro - stainless steel shot blasted)

Tree disk 4-part machine production

Anthracite University
Gray
Gray University
Length x Width x Height
240.0 x 240.0 x 16.0 cm
Weight
2,000.0 kg / St.
Edge
Micro bevel (≤ 2x2 mm)

Product notes

Particularly high concrete quality thanks to high-strength quartz, granite or basalt aggregates
More product notes
