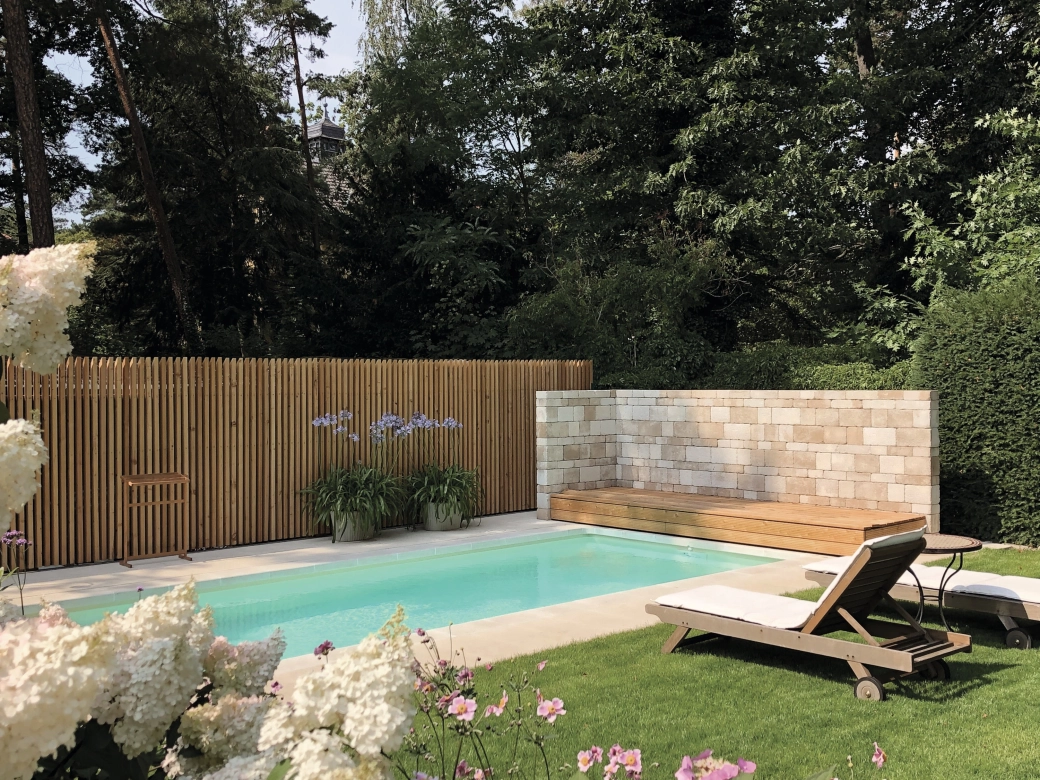

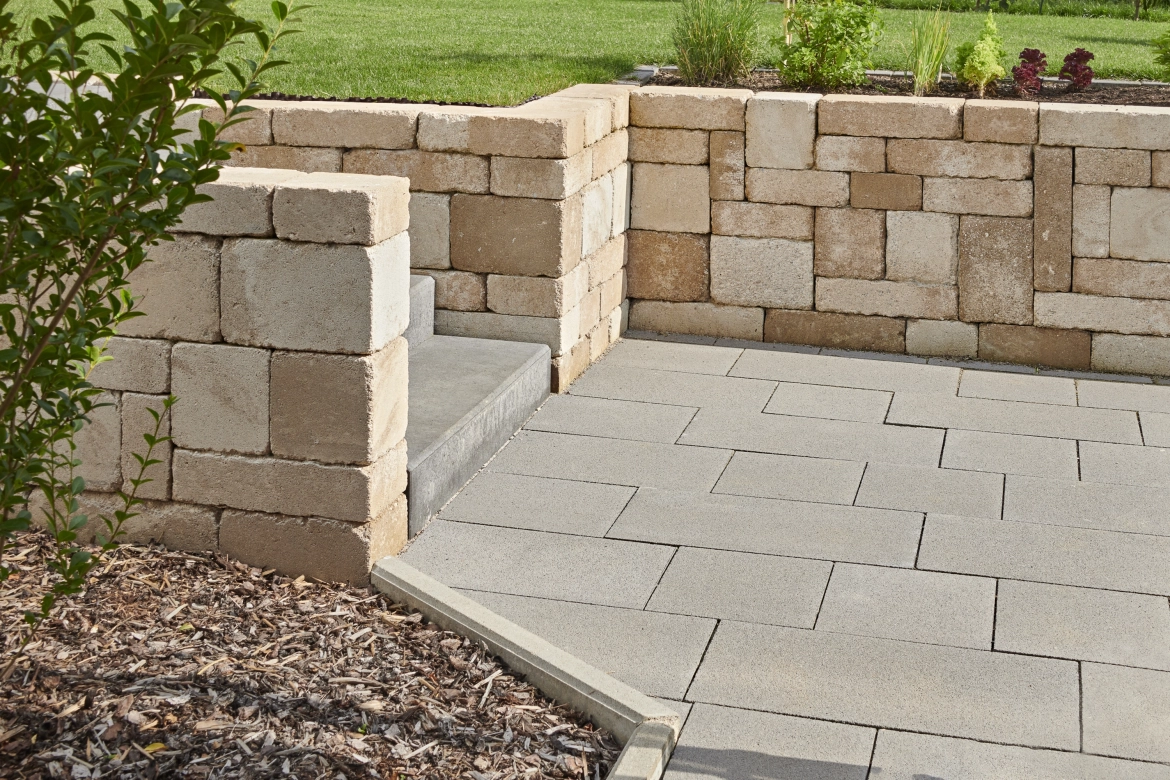

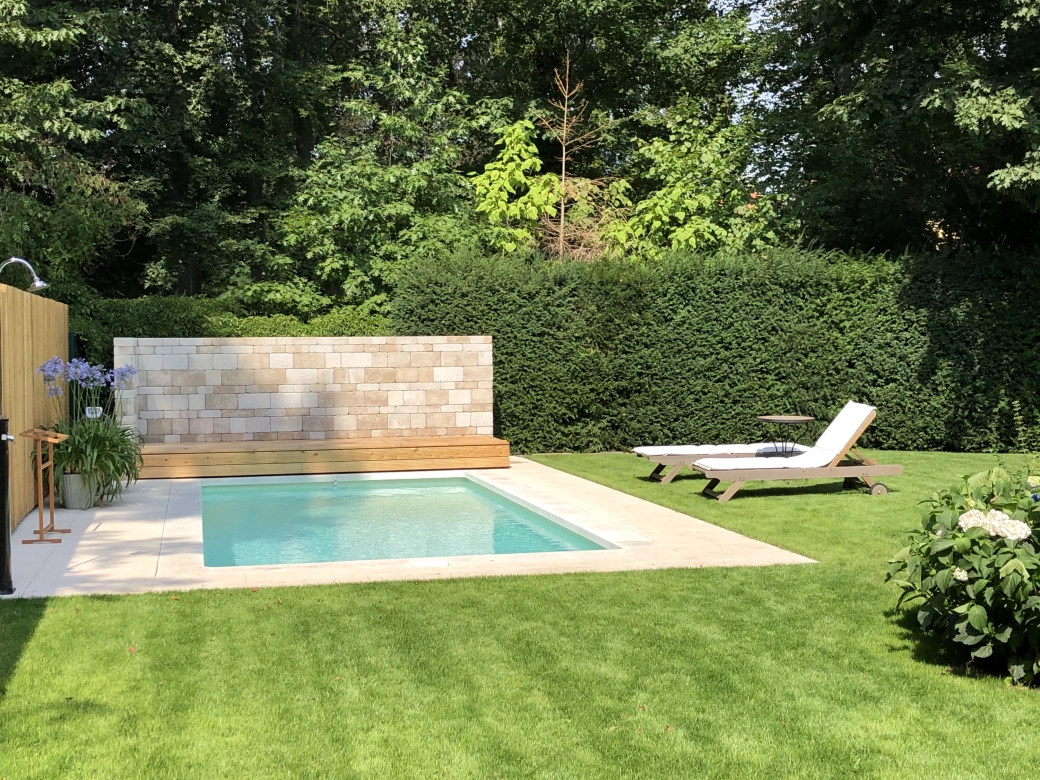

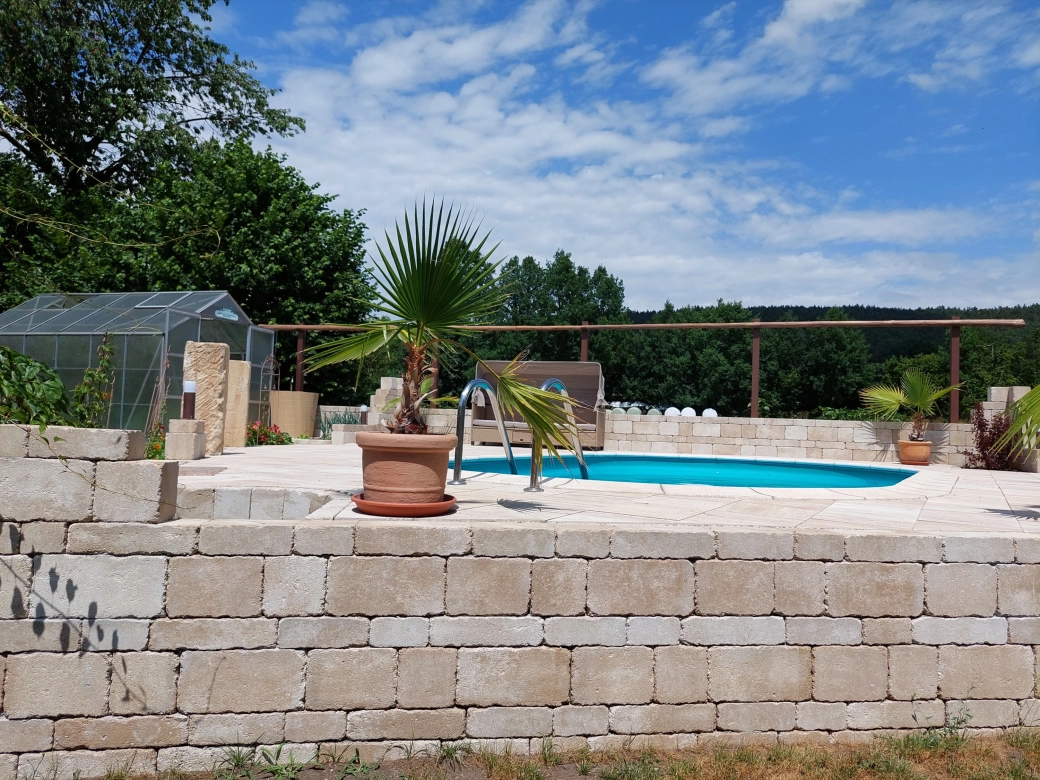

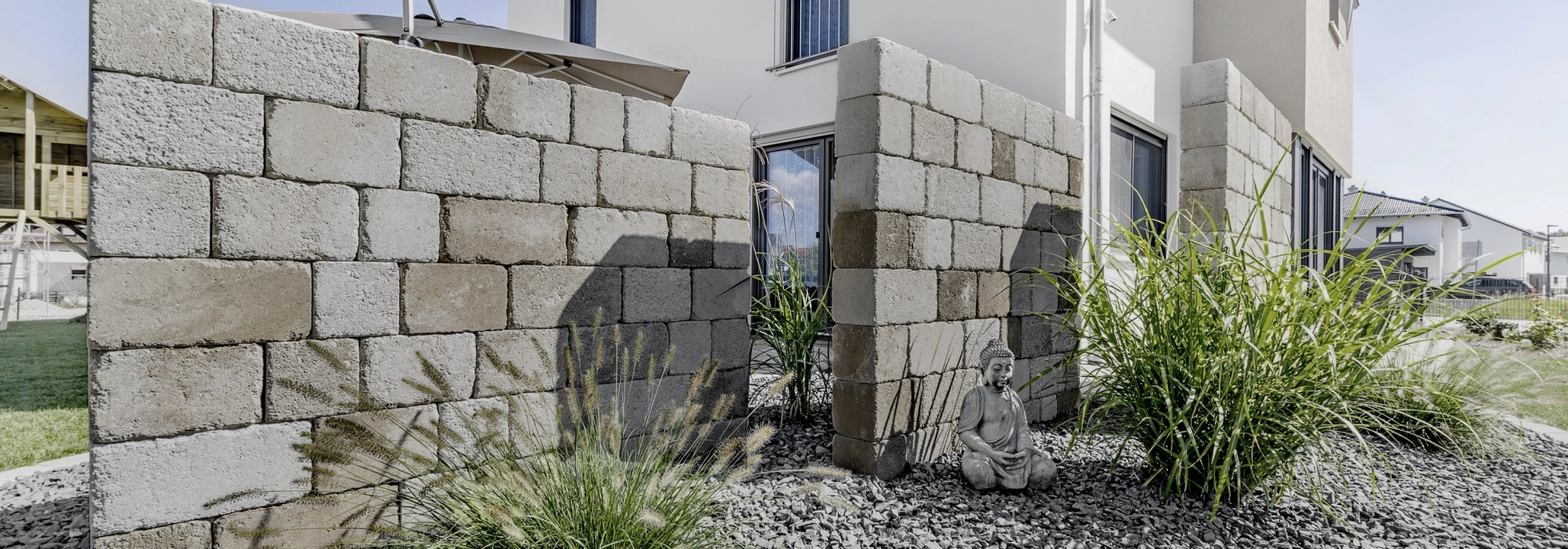

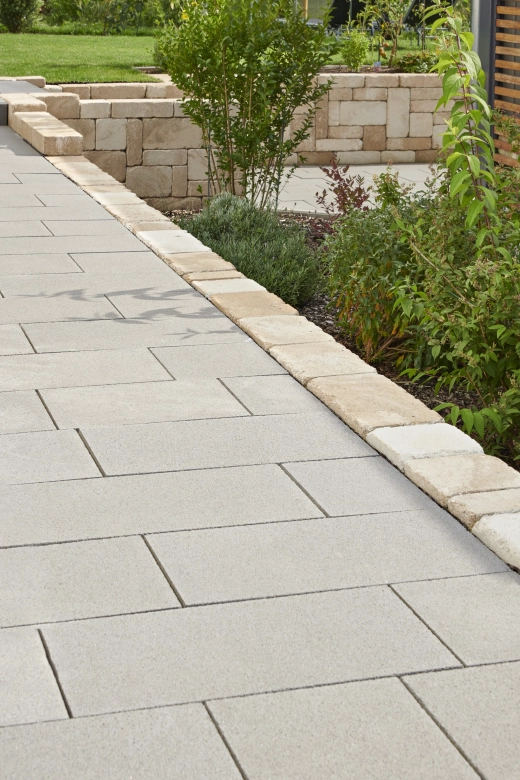

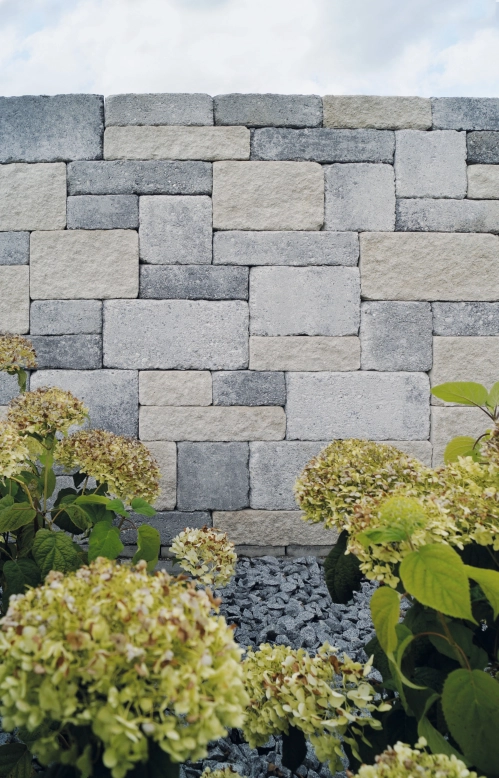

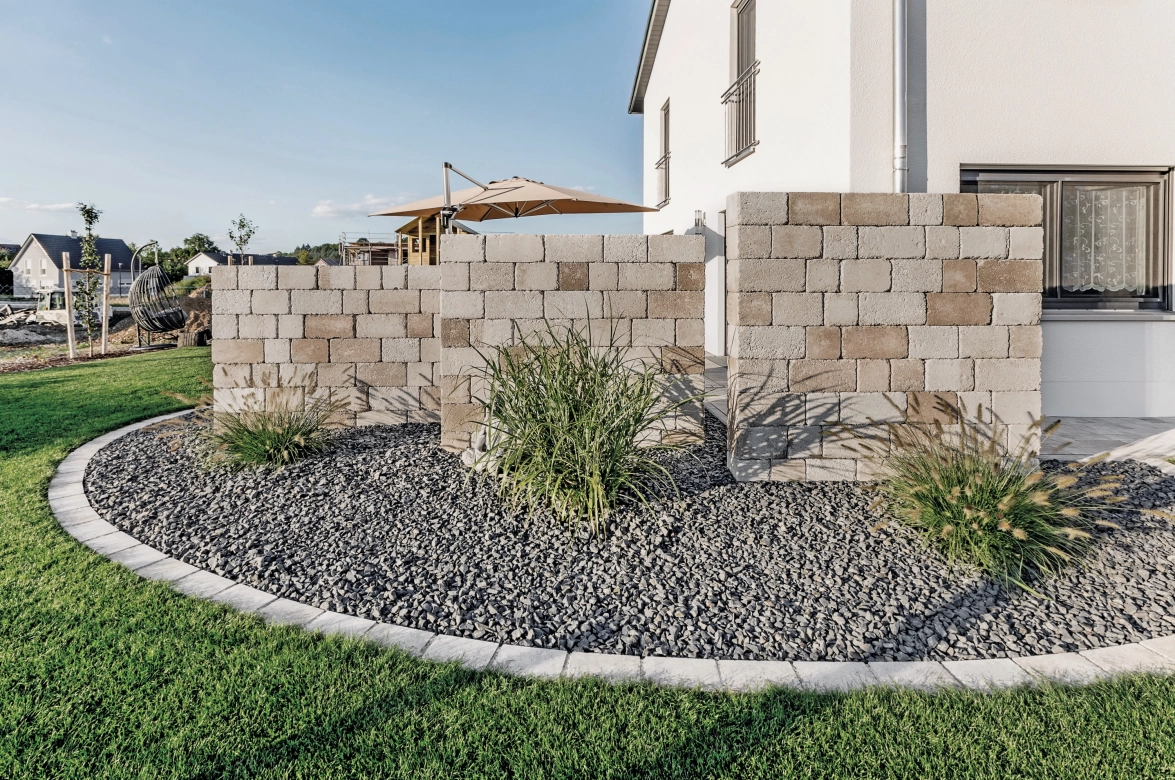

Godelmann GDM.GARDA wall

Product details

aged edge

proClean

proClean 100: hydrophobized

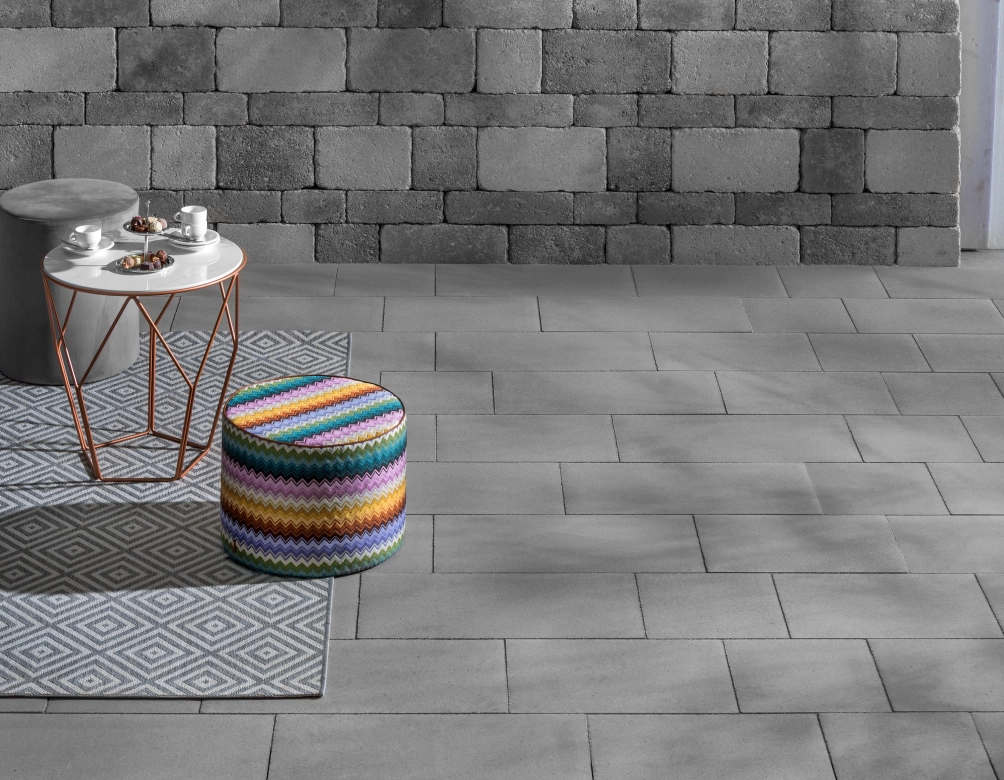

antikplus, proClean 100: aged, hydrophobized Gray nuanced

antikplus proClean 100

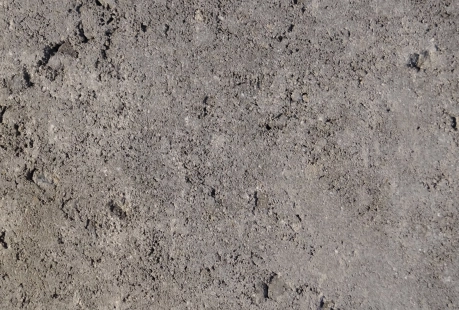

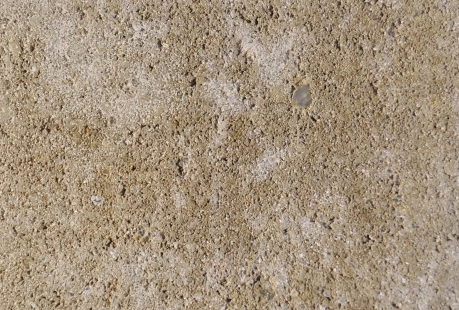

Rough visible surfaces and embossed edges, with hydrophobization

antikplus, proClean 100: aged, hydrophobized Sandstone nuanced

antikplus proClean 100
Rough visible surfaces and embossed edges, with hydrophobization

aged edge

proClean

Brick set (lengths 20, 30, 40 cm)

Width x Height

20.0 x 10.0 cm

Weight

39.6 kg / St.

Edge

Properties

Brick set (lengths 20, 30, 40 cm)

Width x Height

20.0 x 20.0 cm

Weight

79.2 kg / St.

Edge

Properties

Label			Width cm	Height cm	Edge	Weight kg / St.	Properties
Brick set (lengths 20, 30, 40 cm)			20.0	10.0		39.6
Brick set (lengths 20, 30, 40 cm)			20.0	20.0		79.2

made throughout from color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints

More product notes

antikplus proClean 100
Rough visible surfaces and embossed edges, with hydrophobization
formwork-smooth surfaces
Machine-aged edges
no starting stones necessary

Dimensional tolerances of ± 10 mm in length, ± 30 mm in width and ± 2.5 mm in height cannot be avoided.
made throughout from color-coordinated natural stone chippings and sands with UV-resistant iron oxide paints
Garden design element made of concrete according to DIN EN 13198
Frost/de-icing salt resistance: ≤ 100 g/m2
CO₂ neutrally produced

the butt joints of the coping stones must be grouted
the use of blocks with anchor channels in the first row of blocks prevents displacement in the long term
When planning, make sure that no individual stones are available to supplement the system.
In the mix with Mix & Match systems should always start planning with the GDM.MOLINA wall or GDM.DECA wall systems and then replace the corresponding sets with GDM.GARDA wall.
After completing the wall, we recommend treating it with ourGDM.STEINSCHUTZ neutral. This optimally reduces soiling, growth and the penetration of moisture into the masonry. Depending on the weathering, spraying should be repeated once a year or once every two years, depending on the location and exposure of the masonry, after careful cleaning of all visible surfaces. One bottle of GDM.STEINSCHUTZ neutral is sufficient for approx. 10 m2 of wall surface.
Factory cutting of fitting pieces in small quantities according to on-site dimensions possible by prior arrangement
GDM.thin-bed mortar for slender joints in masonry
