GDM.VIA gap
Lawn joint stone

GDM.VIA gap

1 colour 1 texture 3 formats 1 variant

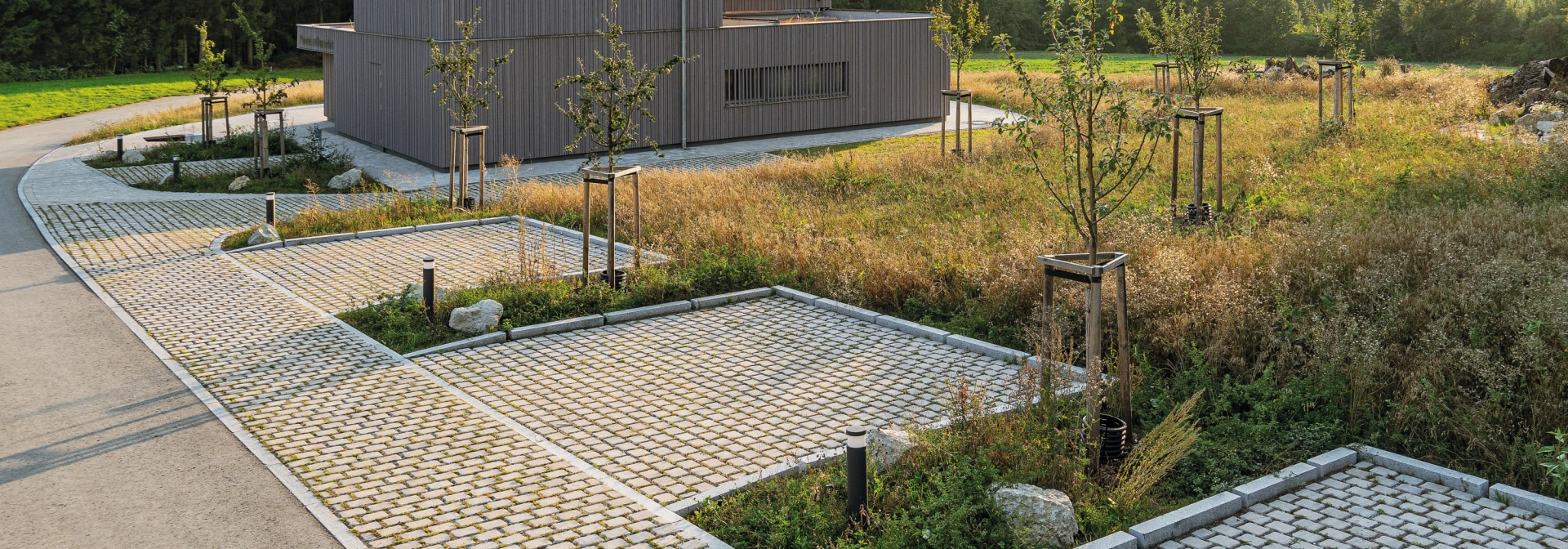

The jointing stone can be used to pave driveways, garage entrances and carports in an environmentally friendly way. The seepage stone can be wonderfully planted, goes well with the GDM.VIA stone, allows rainwater to seep away and saves on wastewater charges.

Product details

Chamfers & Edges

Micro bevel (≤ 2x2 mm)
with concealed molded-on spacer blocks
sharp-edged
with concealed molded-on spacer blocks
sharp-edged with GDM EP
with concealed molded-on spacer blocks

proActive features

5 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain
5 % infiltration-capable surface area, runoff coefficient ψ = 0.25
15 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain
15 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Product gallery

Colours

Formats

Legende

Heavy load for occasional use
Micro bevel (≤ 2x2 mm)
sharp-edged
sharp-edged with GDM EP
15 % infiltration-capable surface area, runoff coefficient ψ = 0.25
proDrain

Rasenfugenstein (nativo; unworked)

Paving stone

Grey
Length x Width x Height
26.25 x 17.5 x 8.0 cm
Gap
15.0 mm
Weight
165.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
sharp-edged with GDM EP
Properties
15 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Paving stone

Grey
Length x Width x Height
21.0 x 17.5 x 8.0 cm
Gap
5.0 mm
Weight
175.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
Micro bevel (≤ 2x2 mm)
Properties
5 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Paving stone

Grey
Length x Width x Height
17.5 x 17.5 x 8.0 cm
Gap
15.0 mm
Weight
165.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
sharp-edged with GDM EP
Properties
15 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Paving stone

Grey
Length x Width x Height
21.0 x 17.5 x 10.0 cm
Gap
5.0 mm
Weight
220.0 kg / m²
Load capacity
Heavy load for occasional use
Edge
sharp-edged
Properties
5 % infiltration-capable surface area, runoff coefficient ψ = 0.25

Product notes

particularly high concrete quality due to high-strength quartz, granite or basalt aggregates
